Model 4954-401 GateFlow IP Core Library - 1K Quad FFT Core
This IP Core is no longer available for individual purchase. It is available installed in Pentek Model 6235.

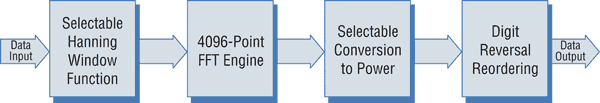

Block Diagram
Datasheet
Manuals
Literature
Life Cycle Management
Ordering & Warranty
Catalogs
| |
- IP Core only installed on Pentek FPGA board-level products
-
Ultra-high-speed, high-performance
1024- and
4096-point complex FFTs
-
Supports Virtex-II and
Virtex-II Pro FPGAs
-
Fits in the Virtex-II
XC2V3000 and larger
devices
-
Four input and output
points per clock cycle
-
Flexible input stage accepts
one, two or four input
streams
-
4096-point FFT calculation
every 1024 clock periods
(7.31 us at 140MHz)
-
1024-point FFT calculation
every 256 clock periods
(1.83 µs at 140MHz)
-
Highly distributed arithmetic
-
16-bit complex or real input
data
-
Selectable 16-bit complex or
unsigned power output data
-
Supports continuous input
and output data
-
Selectable Hanning
window function
-
Naturally ordered input
and output data
-
Operates in continuous
output or triggered oneshot
mode
| |
| |
