Home > Products > Talon RTR 2758

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the RTR 2758. Please login or register to manage your profile.

Talon RTR 2758 LVDS Digital I/O Rugged Rackmount Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Designed to operate under conditions of shock and vibration
  • Removable SSDs
  • 32 bits of LVDS digital I/O
  • LVDS clock, Data Valid and Data Suspend signals
  • Supports clock rates up to 250 MHz
  • Real-time aggregate recording rates up to 1.0 GB/sec
  • Up to 46 terabytes storage to NTFS RAID disk array
  • RAID levels of 0 ,1, 5 , 6, 10 and 50
  • Optional N+1 redundant power supply
  • SystemFlow® GUI virtual instrumentation panel for fast, intuitive operation
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping
  • Windows® 7 Professional workstation with high performance Intel® Core™ i7 processor



Model 2758

Talon RTR Rugged Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

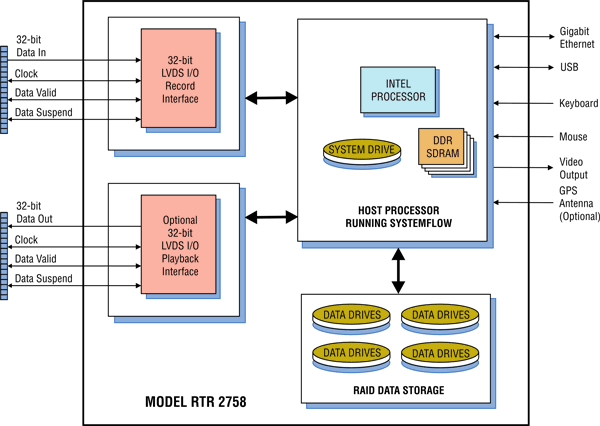

Model 2758 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27580 Operating Manual Talon RTR 2758 - LVDS Digital I/O Rugged Rackmount Recorder 1.0 (10/27/2014)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
