Home > Products > Talon RTR 2727a

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the RTR 2727a. Please login or register to manage your profile.

Talon RTR 2727A 500 MS/sec RF/IF Rugged Portable Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Designed to operate under conditions of shock and vibration
  • Portable system measuring 16.0" W x 6.9" D x 13.0" H
  • Lightweight, just less than 30 pounds
  • Shock- and vibration-resistant SSDs perform well in vehicles, ships and aircraft
  • 500 MHz 12-bit A/Ds or 400 MHz 14-bit A/Ds
  • 800 MHz 16-bit D/A
  • 200 MHz recording and playback signal bandwidths
  • Recording and playback of IF signals up to 700 MHz
  • Real-time aggregate recording rates up to 4.0 GB/sec
  • Windows® 7 Professional workstation with high-performance Intel® Core™ i7 processor
  • Up to 61 terabytes of SSD storage to NTFS RAID solid state disk array
  • SystemFlow® GUI with Signal Viewer analysis tool
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping
  • Optional 10-36 VDC power supply



Model 2727A

Talon RTR Rugged Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

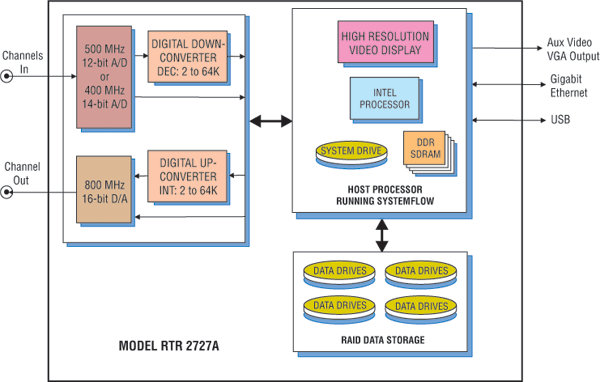

Model 2727A Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27271 Operating Manual Talon RTR 2727A - 500 MS/sec RF/IF Rugged Portable Recorder 1.0 (7/31/2015)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
