Talon RTS 2709 Talon Ultra Wideband 1-/2-Channel RF/IF 3.2 GS/sec Rackmount Recorder

The Model 2709 is no longer available. Please contact Pentek for similar models.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • High-speed RF/IF recording system
  • Sample rates up to 3.2 GHz in single-channel mode
  • Sample rates up to 1.6 GHz in dual-channel mode
  • Capable of recording RT/IF frequencies to 1.75 GHz in single-channel mode
  • Capable of recording RF/IF frequencies to 2.8 GHz in dual-channel mode
  • 12-bit A/D, with 12 and 8 bit packing modes
  • Real-time sustained recording rates of up to 3200 MB/sec
  • 4U 19 inch industrial rack-mount PC server chassis
  • Windows® 7 Professional workstation with high performance Intel® Core i7™ processor
  • Up to 20 terabytes of SSD storage to NTFS RAID disk array
  • RAID levels 0, 1, 5, 6, 10 and 50
  • N+ 1 redundant power supply
  • SystemFlow® GUI with signal viewer analysis tool
  • C-callable API for simple integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping



Model 2709

Talon RTS Commercial Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

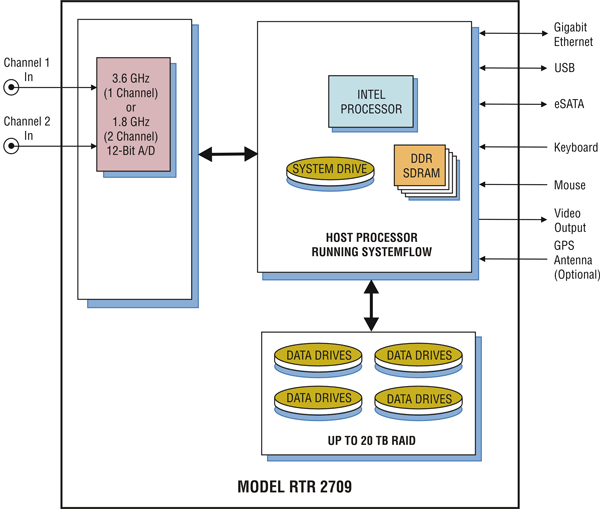

Model 2709 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
