Talon RTS 2620 Talon 6 GHz RF/IF Sentinel Intelligent Signal Scanning Rackmount Recorder

Request a Quote

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Search and capture system using Sentinel™ Intelligent Signal Scanner
  • Captures RF signals up to 6 GHz
  • Capture and scan bandwidths up to 40 MHz
  • 30 GHz/sec scan rate
  • Selectable threshold triggered or manual record modes
  • 16-bit A/D with 75 dB SNR & 87 dB SFDR
  • Built-in DDC with selectable decimation range from 2 to 65,536
  • Built-in DUC with selectable interpolation range from 2 to 65,536
  • 3U to 6U 19-inch rackmount server chassis with hot-swappable HDDs
  • Storage capabilities to 192 TB
  • RAID levels of 0, 5, and 6
  • Windows® workstation with Intel Core™ i7 processor
  • Optional RF upconversion
  • SystemFlow® GUI with virtual Oscilloscope, Spectrum Analyzer and Spectrogram displays



Request a Quote

Model 2620

Talon RTS Commercial Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

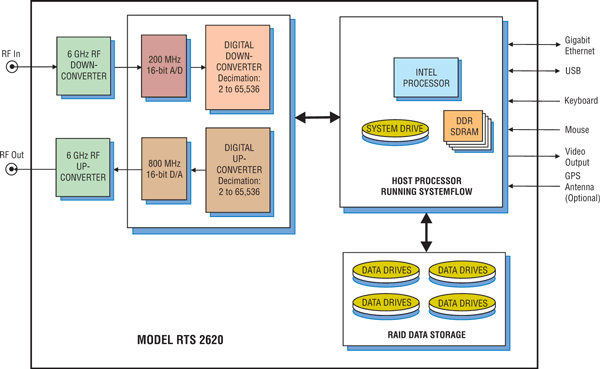

Model 2620 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.26200 Operating Manual Talon RTS 2620 - 6GHz RF/IF Sentinel Intelligent Scanning Recorder 1.4 (7/28/2017)
800.26202 Addendum Addendum: Description of Options for Talon RTS 2620 1.0 (7/28/2017)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
