Talon RTR 2556 Serial FPDP Rugged SFF Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Housed in a small chassis measuring 5.25" H x 8.5" W x 14" D
  • Weigh 17 lbs (7.7 kg)
  • Shock and vibration-resistant SSDs perform well in vehicles, ships and aircraft
  • Complete Serial FPDP record and playback system
  • Up to four I/O channels
  • Removable SSDs
  • Up to 30 terabytes of storage to NTFS RAID disk array
  • Copper, single-mode and multi-mode fiber interfaces available
  • Real-time aggregate recording rates of up to 1.6 GB/sec
  • Supports Flow Control, CRC, and Copy/Loop Mode as a receiver and transmitter
  • Supports 1.0625, 2.125, 2.5, 3.125 and 4.25 GBaud link rates
  • RAID levels of 0, 5, and 6
  • SystemFlow® GUI virtual instrumentation panel for fast, intuitive operation
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping
  • Windows® workstation with high performance Intel® Core™ i7 processor



Model 2556

Talon RTR Rugged Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

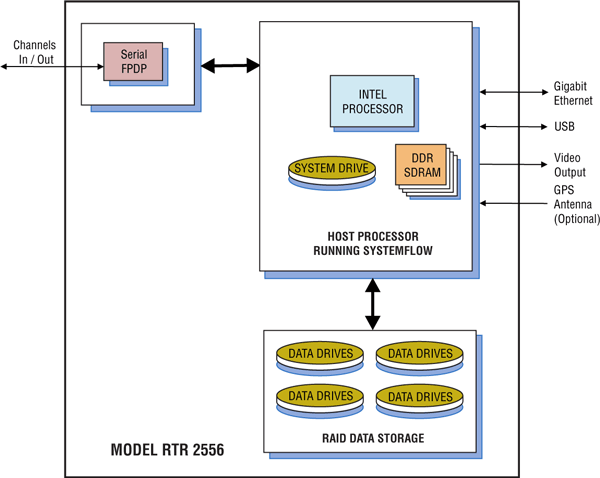

Model 2556 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
