Talon RTR 2548 1 GS/sec RF/IF Rugged SFF Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Housed in a small chassis measuring 5.25" H x 8.5" W x 14" D
  • Weigh 17 lbs (7.7 kg)
  • Shock- and vibration-resistant SSDs perform well in vehicles, ships and aircraft
  • 1 GHz 12-bit A/Ds
  • 1 GHz 12-bit D/As
  • Real-time aggregate recording rates of up to 2.0 GB/sec
  • 400 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 2.0 GHz
  • Up to 30 terabytes of SSD storage to NTFS RAID solid state disk array
  • RAID levels of 0, 5, and 6
  • Windows® workstation with high performance Intel® Core™ i7 processor
  • SystemFlow® GUI with Signal Viewer analysis tool
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping



Model 2548

Talon RTR Rugged Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

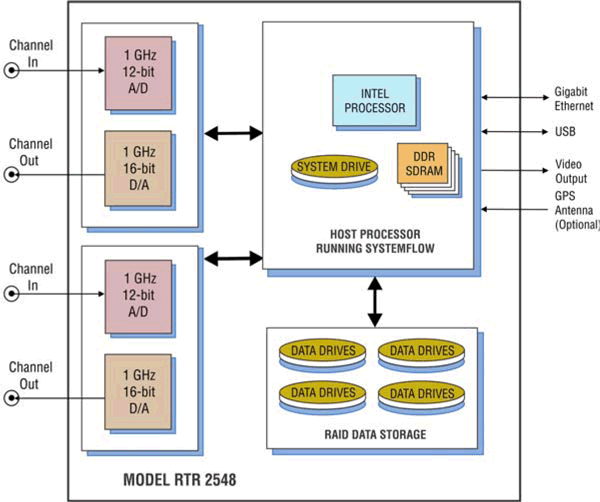

Model 2548 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
