Talon RTR 2546 200 MS/sec RF/IF Rugged SFF Recorder

Request a Quote

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Housed in a small chassis measuring 5.25" H x 8.5" W x 14" D
  • Weigh 17 lbs (7.7 kg)
  • Shock- and vibration-resistant SSDs perform well in vehicles, ships and aircraft
  • 200 MHz 16-bit A/Ds
  • 800 MHz 16-bit D/As
  • Real-time aggregate recording rates of up to 1.6 GB/sec
  • DDC decimation and DUC interpolation range from 2 to 65,536
  • 80 MHz record and playback signal bandwidths
  • Recording and playback of IF signals up to 700 MHz
  • Up to 30 terabytes of SSD storage to NTFS RAID solid state disk array
  • Windows® workstation with high performance Intel® CoreTM i7 processor
  • SystemFlow® GUI with Signal Viewer analysis tool
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping



Request a Quote

Model 2546

Talon RTR Rugged Recorder

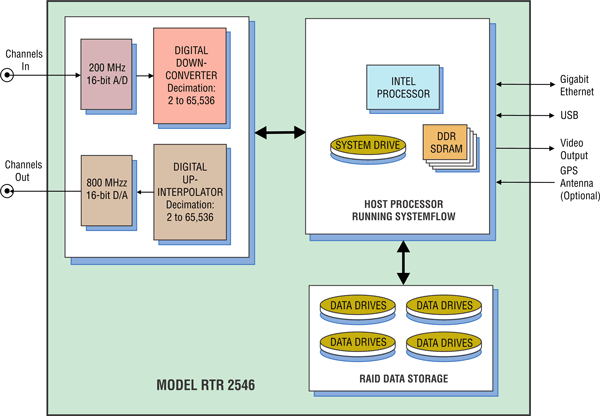

Model 2546 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

John Eklund
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
