Model 6102 8-Channel 16-bit 250 kHz A/D and D/A Converter

This product is no longer available. Contact Pentek for additional information.

Block Diagram




Life Cycle Management

Ordering & Warranty


  • Eight analog I/O channels
  • 16-bit resolution with simultaneous sampling
  • Differential inputs
  • Internal or external sampling clocks to 250 kHz
  • VME, MIX, and C40 comm port interfaces
  • FIFO buffering for each A/D and D/A channel
  • For pricing, delivery and available options, please contact Mario Schiavone at 201-818-5900


Model 6102

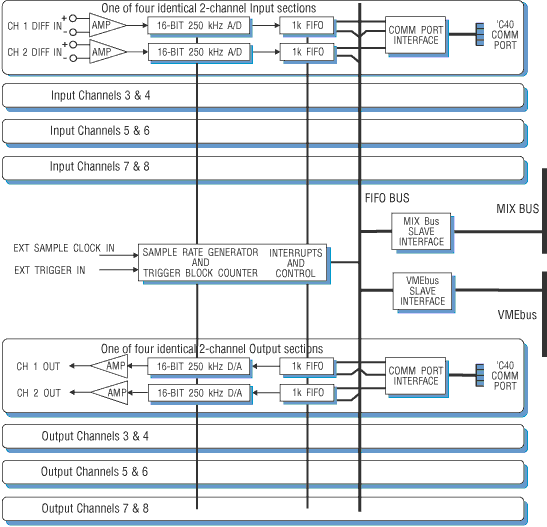

Model 6102 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.00001 Supplemental Manual VMEBus MIX Tutorial A.1 (12/21/2010)
800.00300 Installation Guide MIX Stack Assembly Quick Reference A (2/9/2000)
800.61020 Operating Manual Model 6102 8 Channel, 250 kHz, 16 bit, 'C40 Comm Port Compatible, A/D - D/A B.2 (9/28/1998)
800.61021 Addendum Option 001 (D/A Converters Only) A (6/18/1996)
