Model 72640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - 6U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • View product video
  • Ideal radar and software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • 2 GB of DDR3 SDRAM
  • Sync bus for multimodule synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • See comparable Onyx Xilinx Virtex-7 FPGA Module: Model 72740



Model 72640

Cobalt Xilinx Virtex-6

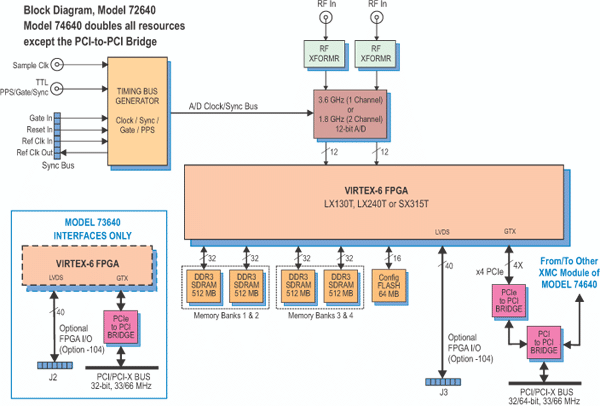

Model 72640 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (1/23/2012)
800.71640 Operating Manual Model 71640 2-Ch 1.5 GHz (1-ch 3 GHz) A/D Cobalt Family XMC Module 3.9 (1/30/2024)
801.71640 Programmer's Reference ReadyFlow Board Support Libraries for Models 71640 and 71641 3.0 (9/23/2015)
809.7x640 Supplemental Manual Vendor Data Sheets for Model 7x640 Series Operating Manuals 1.1 (6/1/2012)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1A (10/10/2017)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
