Model 6250 Configurable Logic, FPDP I/O with Virtex-II FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Supports high-performance custom signal processing
  • One or two FPDP (Front Panel Data Port) interfaces
  • Xilinx Virtex-II Series FPGAs
  • Two gate densities available: 1000K & 3000K
  • On-board auxiliary SRAM
  • GateFlow FPGA Design Kit
  • Factory-installed cores available



Model 6250

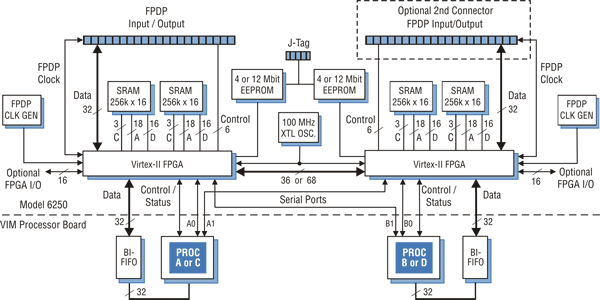

Model 6250 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.62311 Addendum Model 6231/6235/6236/6250 Option 102 Installation A (10/8/2003)
800.62500 Operating Manual Model 6250 Configurable FPGA VIM-2 Module with FPDP B.1 (9/26/2006)
801.62500 User's Guide Model 4999 Option 250, ReadyFlow Board Support Libraries for Model 6250 3.0 (4/13/2005)
801.62501 User's Guide Model 4999 ReadyFlow Board Support Libraries Model 6250 Opt. 401/404/414 1 (7/15/2003)
803.62500 User's Guide Model 4996 Option 250, VxWorks Driver for Model 6250 2.0 (6/1/2011)
