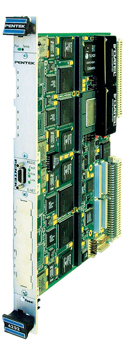

Model 4292 Quad C6203 DSP VME Board

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Four TMS320C6203 DSPs
  • 9600 MIPS peak processing power
  • High-performance PMC and VIM mezzanine sites
  • Four 300 MB/sec bus I/O FIFOs
  • Four 300 MB/sec interprocessor bidirectional FIFOs
  • Four 8 MB or 16 MB SDRAMs, 600 MB/sec transfer rate
  • 32 MB of shared global SDRAM with 528 MB/sec peak transfer rate
  • VME64 master/slave interface
  • Optional RACE++ interface with transfer rate to 267 MB/sec



Model 4292

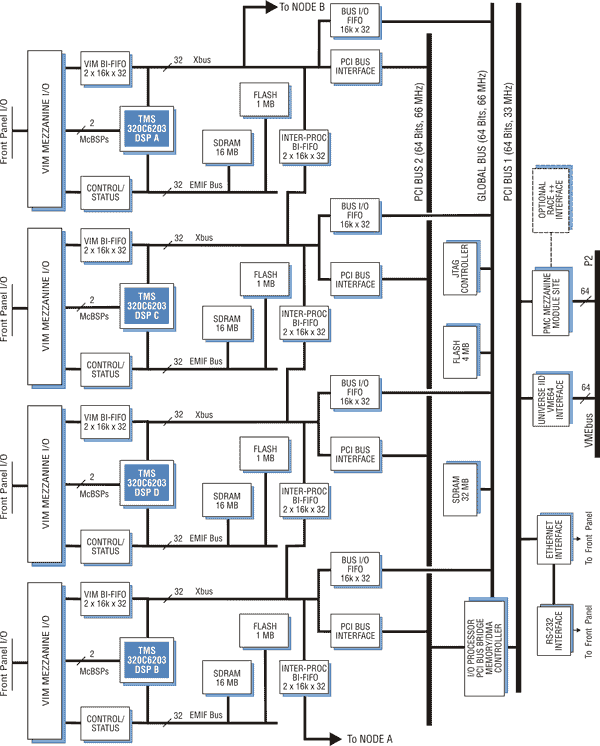

Model 4292 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.42920 Operating Manual Model 4292/4293 Quad/Octal 'C6x DSP for VMEbus A.7 (8/2/2006)
800.42925 Addendum Model 4292/4293 Option 005 Installation 1.0 (4/16/2012)
801.42920 User's Guide Model 4999 Opt. 292, ReadyFlow Board Support Libraries Model 4292/4293 2.3A (10/12/2005)
801.62000 User's Guide Model 4999 ReadyFlow Board Support Libraries for Pentek VIM Modules 2.1 (11/28/2000)
801.62670 User's Guide Model 4999 ReadyFlow Board Support Libraries for TMS320c62x/c67x Processors 1.1 (11/28/2000)
