Model 7340 Dual Digital Up/Downconverter with Virtex-II Pro FPGA - 3U cPCI

This product is in the Inactive Life Cycle. Please contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio transceiver solution
  • Two 105 MHz 14-bit A/Ds
  • Input signal bandwidth up to 40 MHz
  • Four digital downconverters
  • One digital upconverter
  • Two 500 MHz 16-bit D/As
  • 512 MB of DDR SDRAM
  • Xilinx Virtex-II Pro FPGA
  • Up to 1.28 seconds of delay or data capture at 100 MHz
  • Dual timing buses for independent input and output clock rates
  • LVDS clock/sync bus for multi-board synchronization
  • 32 pairs of LVDS connections to the Virtex-II Pro FPGA for custom I/O
  • Optional factory-installed IP cores available



Model 7340

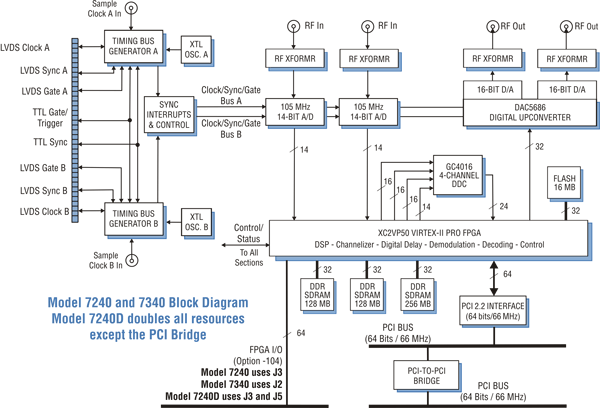

Model 7340 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71400 Operating Manual Model 7140 Dual Channel A/D and D/A, with DDC and DUC PMC Module A.4 (9/14/2012)
800.71401 Addendum 7x40 Series Xilinx Programming Instructions A (11/10/2008)
800.73400 Installation Guide Model 7340 Dual Channel A/D and D/A 3U cPCI board B (10/19/2009)
800.7x40A Addendum User Programing Revisions for 7140/7240/7340/7640 Operating Manuals A (11/10/2008)
801.71400 Installation Guide Model 4999 Opt. 140/141, ReadyFlow Board Support Libraries Model 7140/7141 1.1B (1/21/2008)
801.71401 Programmer's Reference Model 4999 Opt.140/141, ReadyFlow Board Support Libraries Model 7140/7141 1.1B (1/21/2008)
801.71402 Installation Guide Model 4999 Opt.140/141-420, ReadyFlow Board Libraries Model 7140/7141-420 1.1C (4/15/2008)
801.71403 Addendum Model 4999 Opt.140/141-420 7140/7141 ReadyFlow Programmer's Reference Guide 1.1D (9/27/2010)
801.71404 Installation Guide Model 4999 Opt.140/141-430, ReadyFlow Board Libraries Model 7140/7141-430 1.1 (8/15/2008)
801.71405 Addendum Model 4999 Opt.140/141-430,7140/7141 ReadyFlow Programmer's Reference Guide 1.1 (8/15/2008)
803.71400 User's Guide Model 4996 Option 140/141/142, VxWorks Driver for Model 7140/7141/7142 2.3A (1/18/2008)
805.71400 User's Guide Model 4995 Option 140/141/142, Windows Driver for Model 7140/7141/7142 2.3B (1/18/2008)
806.71400 User's Guide Model 4994 Option 140/141/142, Linux Driver for Model 7140/7141/7142 2.3A (1/18/2008)
809.71400 Supplemental Manual Vendor Data Sheets for Model 7x40 Series Operating Manuals A (11/10/2008)
815.71400 User's Guide Model 4995A Option 140/141 Windows ReadyFlow BSP for Model 7140/7141 1.1 (11/23/2009)
816.71400 User's Guide Model 4994A Option 140/141 Linux ReadyFlow BSP for Model 7140/7141 1.1A (1/23/2009)
