Model 6822 Dual 215 MHz A/D Converter VME Board with FPDP Output - VXS

This product is no longer available. Contact Pentek for more information.

Block Diagram




Life Cycle Management

Ordering & Warranty


Free Lifetime Support

  • Two AD9430 12-bit, 215 MHz A/D Converters
  • I/F inputs up to 700 MHz
  • Dual 4X VXS Links for Serial RapidIO
  • Four FPDP or FPDP II front panel output ports
  • FIFO data buffering
  • Xilinx Virtex-II Pro FPGAs
  • Multiboard synchronization
  • Ruggedized and conduction-cooled versions


Model 6822

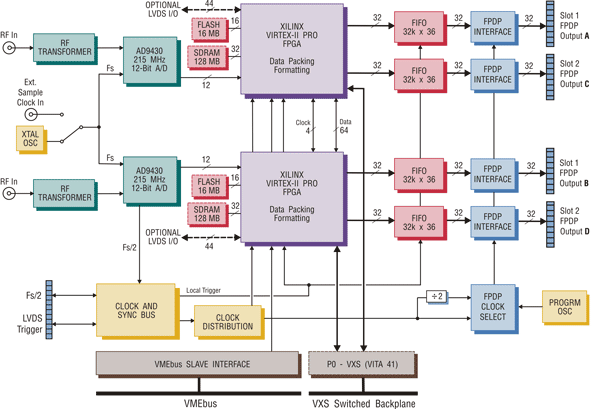

Model 6822 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.68220 Operating Manual Dual 215 MHz 12-bit A/D Converter VMEbus board with FPDP output A.2 (6/18/2010)
801.68220 User's Guide Model 4999 Option 822, ReadyFlow Board Support Libraries for Model 6822 1.0 (11/22/2005)
