Model 6231 16-Channel Narrowband Digital Receiver and A/D with Virtex-E FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Two 65 or 80 MHz, 14-bit A/D converters
  • Optional front panel FPGA I/O connector
  • All receivers can select any of the two inputs
  • 90 MHz input bandwidth
  • 3.2 kHz to 1.6 MHz output bandwidths for fs = 64 MHz
  • Front panel clock and sync bus synchronize multiple boards
  • See Model 7131 for PMC version



Model 6231

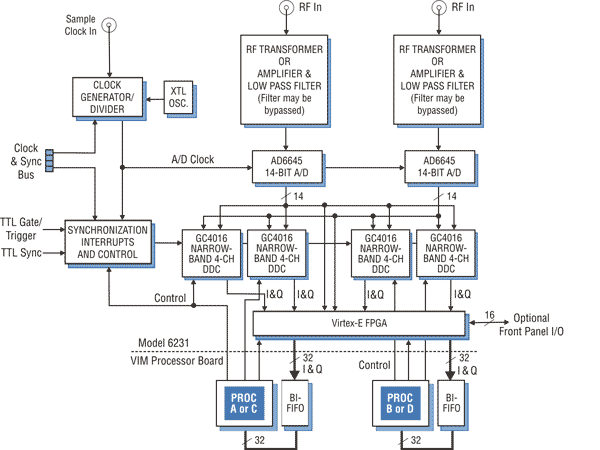

Model 6231 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.62300 Operating Manual Model 6230/6231 32/16-Channel Digital Receiver VIM Module C.1 (10/23/2006)
800.62311 Addendum Model 6231/6235/6236/6250 Option 102 Installation A (10/8/2003)
800.62313 Addendum Addendum: Model 6231, Option 103 A (10/8/2003)
801.62300 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6230/6231 4.0C (1/10/2005)
803.62300 User's Guide Model 4996 Option 230, VxWorks Driver for Model 6230/6231 1.1 (4/15/2011)
