Model 7642 4-Channel A/D, 1-Channel D/A with Virtex-4 FPGAs - PCI

Request a Quote

Block Diagram

Data Sheet

Manuals

Software

Literature

Life Cycle Management


  • Complete software radio interface solution
  • Four 125 MHz 14-bit A/Ds
  • One digital upconverter
  • One 500 MHz 16-bit D/A
  • 768 MB of DDR2 SDRAM
  • Xilinx Virtex-4 FPGAs
  • Up to 2.0 seconds of delay or data capture at 125 MHz
  • Dual timing buses for independent input and output clock rates
  • LVDS clock/sync bus for multi-board synchronization
  • 32 pairs of LVDS connections to the Virtex-4 FPGA for custom I/O through a 64-pin DIN connector



Request a Quote

Model 7642

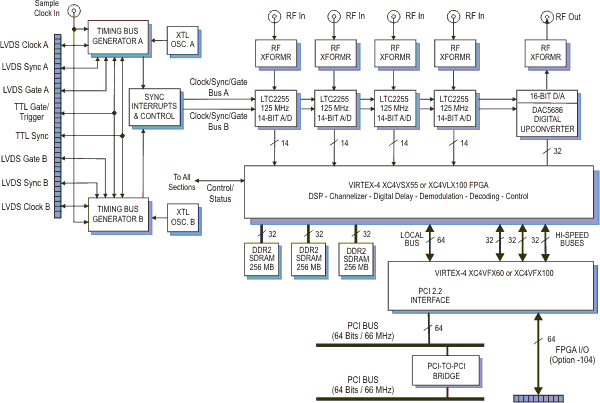

Model 7642 Block Diagram
