Model 7151 Quad 200 MHz, 16-bit A/D, 256-Channel DDC - PMC

Not recommended for new designs. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Four 200 MHz 16-bit A/Ds
  • 256 channels of DDC
  • Independent tuning for each channel
  • DDC decimation from 128 to1024 in steps of 64
  • Independent decimation for each bank
  • Each bank independently selects one of four A/Ds
  • User-programmable 18-bit FIR filter coefficients
  • Default filters offer 0.2 dB ripple and 100 dB rejection
  • LVPECL clock/sync bus for multimodule synchronization



Model 7151


Winner of the Editor's Choice Award by Military Embedded Systems magazine!
Editor's Choice
Award by Military
Embedded Systems

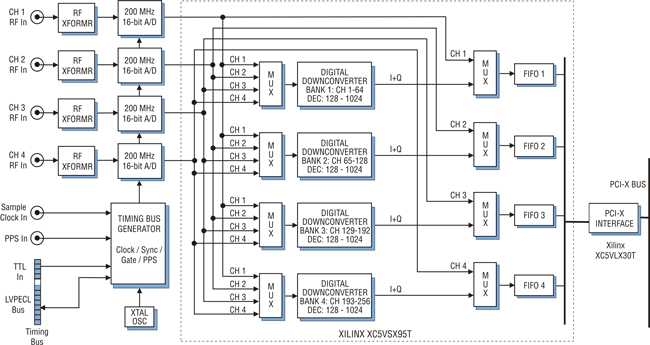

Model 7151 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71510 Operating Manual Model 7151 256-Channel Multi-band DDC PMC Module A.3 (3/17/2014)
801.71511 Programmer's Reference ReadyFlow Board Support Libraries for Model 7151 A (6/8/2010)
809.7x500 Supplemental Manual Vendor Data Sheets for Model 7x50 Series Operating Manuals A (3/22/2010)
815.71510 User's Guide Model 4995A Option 151 Windows ReadyFlow BSP for Model 7151 1.4 (8/12/2010)
816.71510 User's Guide Model 4994A Option 151 Linux ReadyFlow BSP for Model 7151 1.0 (5/29/2012)
820.71510 User's Guide Getting Started Guide for Model 7151 A (10/5/2010)

Literature - ( top )

Brochure
Catalog
Handbook
Technical Brief
Tutorial
Industry Article
Webcast Seminar
