Model 7142-428 GateFlow Transceiver with Multiband DDC and Interpolation Filter - PMC/XMC

Not recommended for new designs. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Software

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio transceiver solution
  • GateFlow IP Core 428, with four high-performance multiband DDCs and interpolation Filter, factory-installed
  • Improved dynamic range
  • Two sets of 18-bit user-programmable FIR filter coefficients
  • Decimation range from 2 to 65,536 in steps of 1
  • Interpolation range from 2 to 32,768 in steps of 4



Model 7142-428

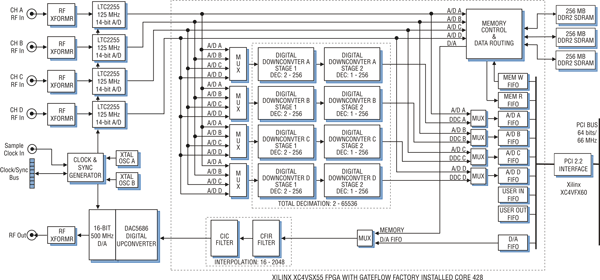

Model 7142-428 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71420 Operating Manual Model 7142 Four Channel A/D with DAC PMC/XMC Module B.10 (2/9/2010)
800.7x421 Addendum Model 7x42 Series -Option 428, Multiband DDC A.1 (4/19/2010)
801.71421 Programmer's Reference Model 4999 Option 142, ReadyFlow Board Support Libraries for Model 7142 1.1 (3/18/2008)
801.71423 Addendum Model 4999 Opt. 142-428 for 7142 ReadyFlow Programmer's Reference Guide 1.0 (6/5/2012)
809.7x420 Supplemental Manual Vendor Data Sheets for Model 7x42 Series Operating Manuals A (11/18/2008)
815.71421 User's Guide Model 4995A Option 142-428 Windows ReadyFlow BSP for Model 7142 Option 428 1.1 (12/8/2009)
816.71421 User's Guide Model 4994A Option 142-428 Linux ReadyFlow BSP for Model 7142 Option 428 1.0 (6/4/2012)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 7142-428
