Model 53610 LVDS Digital I/O with Virtex-6 FPGA - 3U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • 32 bits of LVDS digital I/O
  • One LVDS clock
  • One LVDS data valid
  • One LVDS data suspend
  • Supports LXT and SXT Virtex-6 FPGAs
  • DMA controller moves data to and from system memory
  • Up to 2 GB of DDR3 SDRAM
  • PCI Express Interface
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O to the carrier board
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPXTM System Specification)
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 53610

Cobalt Xilinx Virtex-6

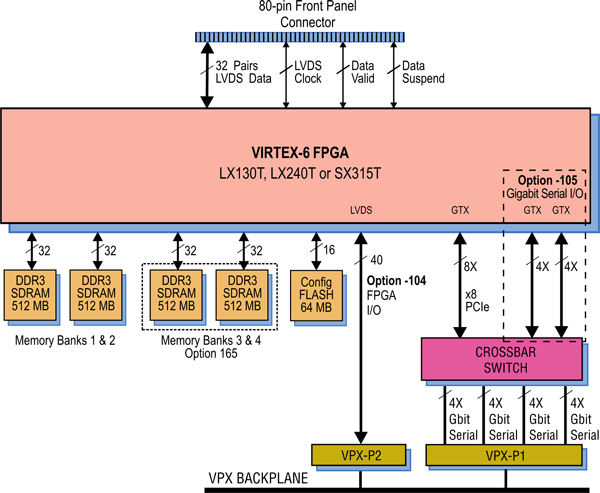

Model 53610 Block Diagram



Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.53610 Installation Guide Model 53610 Digital I/O Cobalt Family VPX Module 1.2 (3/31/2014)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71610 Operating Manual Model 71610 Digital I/O Cobalt Family XMC Module 1.7 (7/2/2015)
801.71610 Programmer's Reference ReadyFlow Board Support Libraries for Model 71610 1.1 (6/22/2016)
809.7x610 Supplemental Manual Vendor Data Sheets for Model 7x610 Series Operating Manuals 1.0 (8/22/2013)
815.71610 User's Guide Model 4995A Option 161 Windows ReadyFlow BSP for Models 71610 1.0 (6/24/2014)
816.71610 User's Guide Model 4994A Option 610 Linux ReadyFlow BSP for Model 71610 1.0 (6/23/2016)
820.53610 User's Guide Getting Started Guide for Model 53610 2.2 (6/11/2014)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 53610
Contact Pentek
For Manual
Model 4994A ReadyFlow Board Support Packages (BSPs) for Linux for Model 53610
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 53610

Software Products - ( top )

Model
Option
Description
4953 610 GateFlow FPGA Design Kit for Pentek Modules
4994A 610 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 610 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 610 ReadyFlow Board Support Packages (BSPs) for VxWorks

Literature - ( top )

Brochure
Catalog
Handbook
Industry Article
