Model 7752 Quad 200 MHz, 16-bit A/D, 32-Channel DDC - PCIe

This product is no longer available. Contact Pentek for additional information.

Block Diagram



Development Systems


Life Cycle Management

Ordering & Warranty


  • PCI Express 2.0 (Gen. 2) Interface up to x16 wide
  • 32 channels of DDC in banks of 8 channels
  • Independent 32-bit DDC tuning for all channels
  • DDC decimation from 16 to 8192 in steps of 8
  • Bandwidths from 20 kHz to10 MHz
  • Different decimation factors between banks
  • User-programmable 18-bit FIR filter coefficients
  • Default filters offer 0.2 dB ripple and 100 dB rejection
  • Power meters and threshold detectors
  • LVPECL clock/sync bus for multimodule synchronization


Model 7752

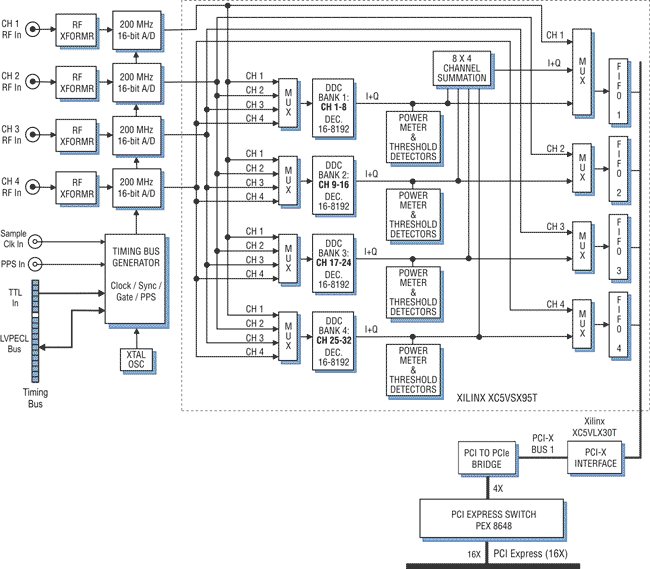

Model 7752 Block Diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71520 Operating Manual Model 7152 32-Channel Multi-band DDC PMC Module A.3 (3/20/2014)
800.77520 Installation Guide Model 7752 Quad/Octal 200 MHz, 16 bit A/D w/32/64-Channel DDC PCIe Board A.1 (7/6/2010)
801.71521 Programmer's Reference ReadyFlow Board Support Libraries for Model 7152 A (6/8/2010)
809.7x500 Supplemental Manual Vendor Data Sheets for Model 7x50 Series Operating Manuals A (3/22/2010)
813.71520 User's Guide Model 4996A Option 152 VxWorks ReadyFlow BSP for Model 7152 1.0A (6/22/2010)
815.71520 User's Guide Model 4995A Option 152 Windows ReadyFlow BSP for Model 7152 1.1A (6/28/2010)
816.71520 User's Guide Model 4994A Option 152 Linux ReadyFlow BSP for Model 7152 1.1 (12/3/2010)
