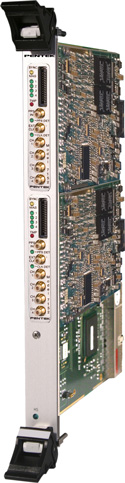

Model 7252D Octal 200 MHz, 16-bit A/D, 64-Channel DDC - 6U cPCI

Not recommended for new designs. Contact Pentek for more information.

Block Diagram




Life Cycle Management

Ordering & Warranty


  • 64 channels of DDC in eight banks of 8 channels
  • Eight 200 MHz, 16-bit A/Ds
  • Independent 32-bit DDC tuning for all channels
  • DDC decimation from 16 to 8192 in steps of 8
  • Bandwidths from 20 kHz to 10 MHz
  • Different decimation factors between banks
  • User-programmable 18-bit FIR filter coefficients
  • Default filters offer 0.2 dB ripple and 100 dB rejection
  • Power meters and threshold detectors
  • LVPECL clock/sync bus for multiboard synchronization
  • The 7252D doubles the resources shown in the block diagram


Model 7252D


Model 7252D Block Diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71520 Operating Manual Model 7152 32-Channel Multi-band DDC PMC Module A.3 (3/20/2014)
800.72520 Installation Guide Model 7252 32-Channel, Multi-band DDC cPCI Board A (8/13/2010)
801.71521 Programmer's Reference ReadyFlow Board Support Libraries for Model 7152 A (6/8/2010)
809.7x500 Supplemental Manual Vendor Data Sheets for Model 7x50 Series Operating Manuals A (3/22/2010)
813.71520 User's Guide Model 4996A Option 152 VxWorks ReadyFlow BSP for Model 7152 1.0A (6/22/2010)
815.71520 User's Guide Model 4995A Option 152 Windows ReadyFlow BSP for Model 7152 1.1A (6/28/2010)
816.71520 User's Guide Model 4994A Option 152 Linux ReadyFlow BSP for Model 7152 1.1 (12/3/2010)
