Model 7241D-430 GateFlow Transceiver with 256-Channel Narrowband DDC - 6U cPCI

This product is no longer available. Contact Pentek for more information.

Block Diagram




Life Cycle Management

Ordering & Warranty


  • Complete software radio transceiver solution
  • GateFlow Core 430, with 512 Channels of Narrowband Digital Downconverters factory-installed
  • 512 programmable NCOs with 32-bit frequency tuning resolution
  • Programmable decimation settings from 1024 to 9984 in steps of 256


Model 7241D-430

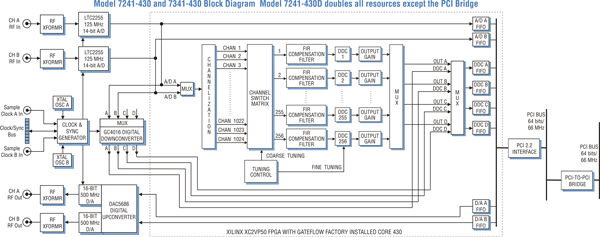

Model 7241D-430 Block Diagram

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71410 Operating Manual Model 7141 Dual-Channel Multiband Transceiver PMC/XMC Module A.4 (6/15/2010)
800.72410 Installation Guide Model 7241 Dual-Channel Multiband Transceiver 6U cPCI Board B (1/28/2010)
800.7x401 Addendum Model 7x40/7x41 Series -Option 430, 256-Channel Narrowband DDC A (11/11/2008)
801.71404 Installation Guide Model 4999 Opt.140/141-430, ReadyFlow Board Libraries Model 7140/7141-430 1.1 (8/15/2008)
801.71405 Addendum Model 4999 Opt.140/141-430,7140/7141 ReadyFlow Programmer's Reference Guide 1.1 (8/15/2008)
803.71400 User's Guide Model 4996 Option 140/141/142, VxWorks Driver for Model 7140/7141/7142 2.3A (1/18/2008)
805.71400 User's Guide Model 4995 Option 140/141/142, Windows Driver for Model 7140/7141/7142 2.3B (1/18/2008)
806.71400 User's Guide Model 4994 Option 140/141/142, Linux Driver for Model 7140/7141/7142 2.3A (1/18/2008)
809.71410 Supplemental Manual Vendor Data Sheets for Model 7x41 Series Operating Manuals A (11/12/2008)
