Model 7120 2 Channel Analog RF Wideband Downconverter - PMC/XMC

Request a Quote

Block Diagram





Life Cycle Management

Ordering & Warranty


  • Accepts RF signals from 400 MHz to 4000 MHz
  • Accepts RF input levels from -60 dBm to -20 dBm
  • Baseband IF output with up to 390 MHz bandwidth
  • Internal OCXO or external 10 MHz frequency reference


Request a Quote

Model 7120

Bandit Analog Receiver

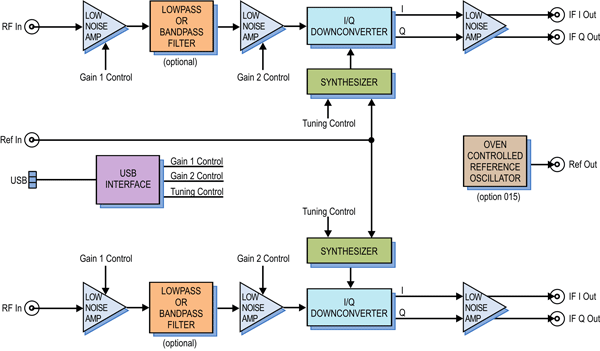

Model 7120 Block Diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.71200 Operating Manual Model 7120 Bandit Family 2-Channel Analog RF I/Q Demodulator XMC Module 0.1 (9/30/2013)
801.71200 Programmer's Reference ReadyFlow Board Support Libraries for Model 7120 1.0 (6/4/2014)
815.71200 User's Guide Model 4995A Option 120 Windows ReadyFlow BSP for Model 7120 1.1 (10/13/2014)
816.71200 User's Guide Model 4994A Option 120 Linux ReadyFlow BSP for Model 7120 1.0 (10/9/2014)

Software Products - ( top )

4994A 120 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 120 ReadyFlow Board Support Packages (BSPs) for Windows
