Model 53641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - 3U VPX

Request a Quote

Block Diagram




Development Systems


Life Cycle Management

Ordering & Warranty


  • View product video
  • Ideal radar and software radio interface solution
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • 2 GB of DDR3 SDRAM
  • Programmable one- or two- channel DDC (Digital Downconverter)
  • PCI Express (Gen. 1 & 2) interface x8 wide
  • Sync bus for multimodule synchronization
  • Optional LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-65 (OpenVPXTM System Specification)
  • Ruggedized and conduction-cooled versions available


Request a Quote

Model 53641

Cobalt Xilinx Virtex-6

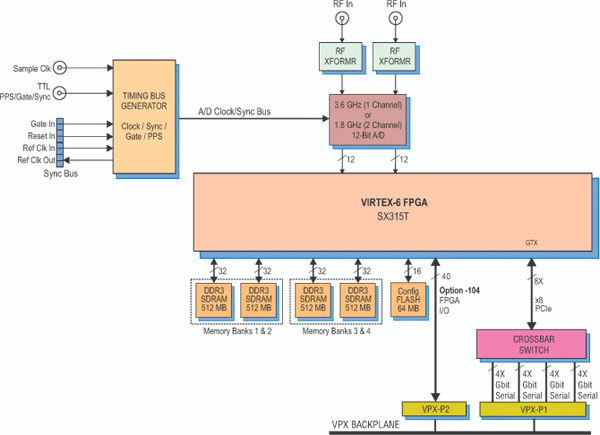

Model 53641 Block Diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.53641 Installation Guide Model 53641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC Cobalt Family VPX board 1.5 (6/10/2016)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71640 Operating Manual Model 71640 2-Ch 1.5 GHz (1-ch 3 GHz) A/D Cobalt Family XMC Module 3.9 (6/9/2016)
800.71641 Addendum Model 71641 2-Ch 1.5 GHz (1-ch 3 GHz) A/D w/DDC 1.5 (9/28/2015)
801.71640 Programmer's Reference ReadyFlow Board Support Libraries for Models 71640 and 71641 3.0 (9/23/2015)
809.7x640 Supplemental Manual Vendor Data Sheets for Model 7x640 Series Operating Manuals 1.1 (6/1/2012)
815.71640 User's Guide Model 4995A Option 164/641/741 Windows ReadyFlow BSP - 71640, 71641, 71741 4.1 (10/7/2015)
816.71640 User's Guide Model 4994A Option 164/641/741 Linux ReadyFlow BSP for 71640, 71641, 71741 4.3 (11/6/2015)
820.53641 User's Guide Getting Started Guide for Model 53641 2.2 (6/12/2014)
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 53641

Software Products - ( top )

4994A 641 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 641 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 641 ReadyFlow Board Support Packages (BSPs) for VxWorks
