Model 5341-420 GateFlow Transceiver with Wideband DDC and Interpolation Filter - 3U VPX

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete software radio interface solution
  • 3U VPX form factor
  • GateFlow Core 420, two high-performance wideband DDCs and interpolation filter, factory-installed
  • Extended DDC decimation range of 2 to 1,048,576
  • Extended DDC bandwidth range of 40 MHz to 76.3 Hz
  • Extended DUC interpolation range of 2 to 32,768
  • Extended DUC bandwidth range of 40 MHz to 2.44 kHz
  • LVDS clock/sync bus for multiboard synchronization



Model 5341-420

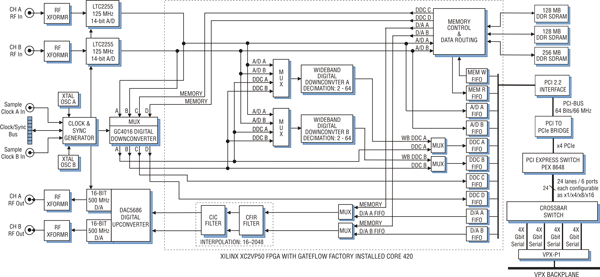

Model 5341-420 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.
