Model 3316 Flexor 8-Channel 250 MHz, 16-bit A/D - FMC

Request a Quote

Block Diagram




Development Systems


Life Cycle Management

Ordering & Warranty


  • Eight 250 MHz, 16-bit A/Ds
  • On-board timing bus generator with multiboard synchronization
  • Sample clock synchronization to an external system reference
  • VITA 57 FMC compatible
  • Complete radar or software radio interface solution when combined with the Model 5973 3U OpenVPX or Model 7070 PCIe Virtex-7 FMC carrier
  • Ruggedized and conduction-cooled versions available


Request a Quote

Model 3316

Flexor FMC

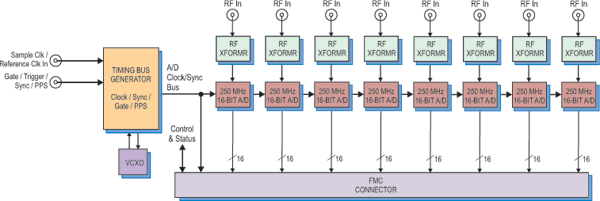

Model 3316 Block Diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.33161 Operating Manual Model 5973 Option 316 Operating Manual 1.8 (2/27/2017)
800.33165 Operating Manual Model 7070 Option 316 Operating Manual 1.6 (7/7/2016)
800.33xx0 User's Guide Example Program for Pentek's Flexor FMCs Used with Xilinx VC707 Eval. Kit 0.1 (4/18/2016)
801.71760 Programmer's Reference ReadyFlow Board Support Library: 7176x, 5973/7070-316, 5973/7070-317, 3316 3.3 (9/19/2016)
809.33160 Supplemental Manual Vendor Datasheets for Model 3316 Operating Manual 0.1 (8/19/2015)
809.33161 Supplemental Manual Vendor Data Sheets for Model 5973 Option 316 Operating Manual 1.0 (8/4/2015)
809.33165 Supplemental Manual Vendor Data Sheets for Model 7070 Option 316 Operating Manual 1.1 (8/4/2015)
815.33160 User's Guide Model 4995A Option 316/317 Windows ReadyFlow BSP 1.0A (9/12/2016)
816.33160 User's Guide Model 4994A Option 316/317 Linux ReadyFlow BSP 1.1A (3/31/2017)
Contact Pentek
For Manual
Model 4953 GateFlow FPGA Design Kit for Pentek Modules for Model 3316

Software Products - ( top )

4953 316 GateFlow FPGA Design Kit for Pentek Modules
4994A 316 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 316 ReadyFlow Board Support Packages (BSPs) for Windows
