Home > Products > Model 2718 Printer Friendly Version

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the RTS 2718.
Please login or register to manage your profile.

RTS 2718 LVDS Digital I/O Rackmount Recorder

Request a Quote

Block Diagram




Life Cycle Management

Ordering & Warranty


  • 32-bits of LVDS digital I/O
  • LVDS clock, Data Valid and Data Suspend signals
  • Supports clock rates up to 250 MHz
  • Real-time aggregate recording rates up to 1.6 GB/s
  • Up to 60 terabytes of storage to NTFS RAID disk array
  • RAID levels of 0, 1, 5, 6, 10 and 50
  • SystemFlow® GUI virtual instrumentation panel for fast, intuitive operation
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping
  • Windows® 7 Professional workstation with high performance Intel® CoreTM i7 processor


Request a Quote

Model 2718

Talon RTS Commercial Recorder

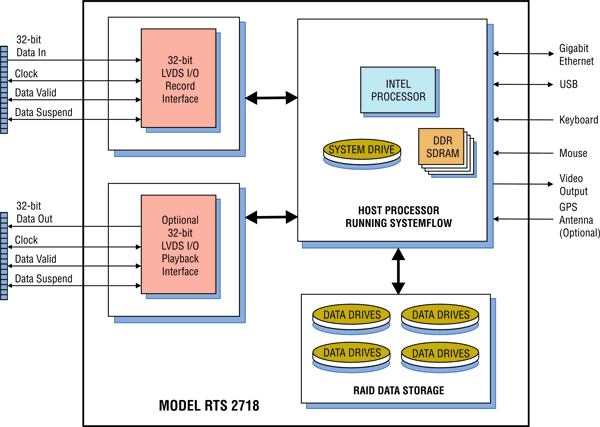

Model 2718 Block Diagram

Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
800.27180 Operating Manual Talon RTS 2718 - LVDS Digital I/O Rackmount Recorder 1.1 (3/24/2015)
800.27xx2 User's Guide SystemFlow API User's Development Guide 3.0 (4/27/2016)
800.27xx4 User's Guide SystemFlow Simulator 2.0 (4/29/2016)
