Home > Products > Talon RTS 2706

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the RTS 2706. Please login or register to manage your profile.

Talon RTS 2706 200 MS/sec RF/IF Rackmount Recorder

Please contact Pentek for availability.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Complete multiband recording and playback system
  • 4U 19 inch industrial rackmount PC server chassis
  • Windows® 7 Professional workstation with high performance Intel® Core i7™ processor
  • 200 MHz max 16-bit A/D sampling and recording: up to eight channels
  • 800 MHz 16-bit D/A sampling for playback, up to eight channels
  • 80 MHz recording and playback signal bandwidths
  • Capable of record/playback of IF frequencies up to 700 MHz
  • Real-time aggregate recording rates of up to 1.6 GB/sec
  • Up to 100 terabytes of storage to NTFS RAID disk array
  • RAID levels 0, 1, 5, 6, 10 and 50
  • SystemFlow® GUI with signal viewer analysis tool
  • C-callable API for simple integration of recorder into application
  • File headers include time stamping and recording parameters
  • DDC decimation and DUC interpolation range from 2 to 65,536
  • Optional GPS time and position stamping
  • See Datasheet for configuration options for playback, recording and storage capacity



Model 2706

Talon RTS Commercial Recorder
SystemFlow Software for Talon Recording Systems
ArchiTek FPGA Development Suite

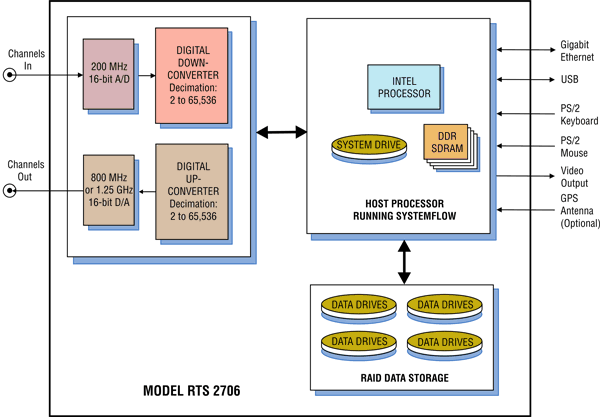

Model 2706 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.27060 Operating Manual Talon RTS 2706 - 200 MS/sec RF/IF Rackmount Recorder 3.2 (3/16/2015)
800.27xx2 User's Guide SystemFlow API User's Development Guide for Talon Recording Systems 3.10 (12/28/2017)
800.27xx4 User's Guide SystemFlow Simulator 2.1 (7/23/2018)
800.27xx5 User's Guide Telnet Facility for Talon Recording Systems 2.4 (3/3/2022)
