Model 8266 SPARK PC Development System for PCIe Cobalt, Onyx, Flexor and Jade Boards

This product is no longer available. Please contact Mercury Systems for similar chassis.

Block Diagram

Datasheet

Manuals

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • 4U 19-inch rackmount PC server chassis, 21-inch deep
  • Windows® or Linux® workstation
  • Intel® processor
  • 8 GB DDR3 SDRAM
  • Delivered with board-appropriate software installed: ReadyFlow® or Navigator® drivers and board support libraries

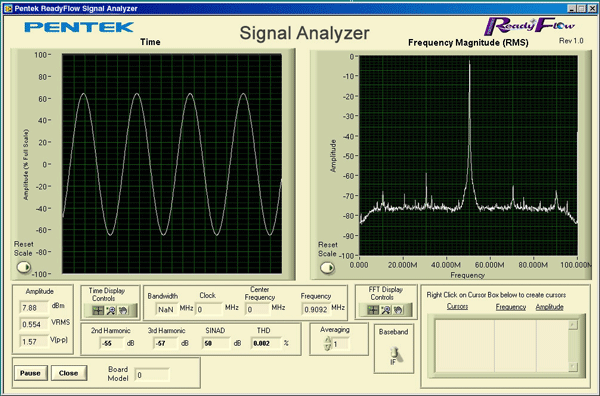

  • Out-of-the-box ready-to-run examples



Model 8266

SPARK Development System


Model 8266 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.78062 Addendum Model 78xxx Option 251 Addendum 1.0 (5/26/2015)
800.82660 Operating Manual Model 8266 SPARK PC Development System for Cobalt, Onyx, Flexor, Jade 3.1 (6/5/2019)

Compatible PCI Express boards - ( top )

Model
Description
Kintex UltraScale
Model 78891 L-Band RF Tuner and 2-Channel 400 MHz A/D with Kintex UltraScale FPGA - PCIe
Model 78865 2-Channel 200 MHz A/D with 766 DDCs, Kintex UltraScale FPGA - PCIe
Model 78862 4-Channel 200 MHz A/D with Multiband DDCs, Kintex UltraScale FPGA - PCIe
Model 78861 4-Channel 200 MHz A/D with DDC, Kintex UltraScale FPGA - PCIe
Model 78851 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - PCIe
Model 78841 1-Ch 3.6 GHz or 2-Ch 1.8 GHz 12-bit A/D with DDC, Kintex UltraScale - PCIe
Model 78821 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Kintex UltraScale - PCIe
Model 78810 LVDS Digital I/O with Kintex UltraScale FPGA - PCIe
Model 78800 Kintex UltraScale FPGA Coprocessor - PCIe
Model 78141 1-Ch. 6.4 GHz or 2-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - PCIe
Model 78132 8-Channel 250 MHz A/D with Multiband DDC, Kintex UltraScale FPGA - PCIe
Model 78131 8-Channel 250 MHz A/D with DDC, Kintex UltraScale FPGA - PCIe
Model
Description
UltraScale+ RFSoC
Model 7053 8-Channel A/D & D/A Zynq UltraScale+ RFSoC Gen 3 Processor - PCIe
Model 7050 8-Channel A/D & D/A Zynq UltraScale+ RFSoC Processor - PCIe
Model
Description
Xilinx Virtex-6
Model 78690 L-Band RF Tuner and 2-Channel 200 MHz A/D with Virtex-6 FPGA - PCIe
Model 78671 4-Ch 1.25 GHz, 16-bit D/A with DUC, Extended Interpolation, Virtex-6 - PCIe
Model 78670 4-Channel 1.25 GHz, 16-bit D/A with Virtex-6 FPGA - PCIe
Model 78664 4-Channel 200 MHz A/D with DDC, VITA 49.0, Virtex-6 FPGA - PCIe
Model 78663 1100-Channel GSM Channelizer wih Quad A/D - PCIe
Model 78662 4-Channel 200 MHz A/D with 32-Channel DDC, Virtex-6 FPGA - PCIe
Model 78661 4-Channel 200 MHz A/D with DDC, Virtex-6 FPGA - PCIe
Model 78660 4-Channel 200 MHz, 16-bit A/D with Virtex-6 FPGA - PCIe
Model 78651 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - PCIe
Model 78650 2-Channel 500 MHz A/D and 2-Channel 800 MHz D/A with Virtex-6 FPGA - PCIe
Model 78641 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - PCIe
Model 78640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - PCIe
Model 78630 1 GHz A/D and D/A with Virtex-6 FPGA - PCIe
Model 78624 Adaptive Relay Board, Virtex-6 FPGA - PCIe
Model 78621 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-6 FPGA - PCIe
Model 78620 3-Channel 200 MHz A/D and 2-Channel 800 MHz D/A with Virtex-6 FPGA - PCIe
Model 78611 Quad Serial FPDP Interface with Virtex-6 FPGA - PCIe
Model 78610 LVDS Digital I/O with Virtex-6 FPGA - PCIe
Model 7811 Quad Serial FPDP Interface with Virtex-6 FPGA - PCIe
Model
Description
Xilinx Virtex-7
Model 78791 L-Band RF Tuner and 2-Channel 500 MHz A/D with Virtex-7 FPGA - PCIe
Model 78761 4-Channel 200 MHz A/D with DDC, Virtex-7 FPGA - PCIe
Model 78760 4-Channel 200 MHz, 16-bit A/D with Virtex-7 FPGA - PCIe
Model 78751 2-Ch 500 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - PCIe
Model 78741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - PCIe
Model 78730 1 GHz A/D and D/A with Virtex-7 FPGA - PCIe
Model 78721 3-Ch 200 MHz A/D with DDC & 2-Ch 800 MHz D/A with DUC, Virtex-7 FPGA - PCIe
Model 78720 3-Channel 200 MHz A/D and 2-Channel 800 MHz D/A with Virtex-7 FPGA - PCIe
Model 7070-324 OnyxFX FlexorSet 4-Ch 16-bit: 500 MHz A/D & 2 GHz D/A - PCIe
Model 7070-320 OnyxFX FlexorSet 2-Ch. 3.0 GHz A/D, 2-Ch. 2.8 GHz D/A - PCIe
Model 7070-317 OnyxFX FlexorSet 8-Channel 250 MHz A/D with DDCs - PCIe
Model 7070-316 OnyxFX FlexorSet 8-Channel 250 MHz A/D - PCIe
Model 7070-313 OnyxFX FlexorSet 4-Ch. 250 MHz A/D w/DDCs, 2-Ch. 800 MHz D/A w/DUC, Int - PCIe
Model 7070-312 OnyxFX FlexorSet 4-Ch. 250 MHz A/D, 2-Ch. 800 MHz D/A - PCIe
Model 7070 OnyxFX Virtex-7 Processor and FMC Carrier - PCIe
Model
Description
FMC
