Model 78663 1100-Channel GSM Channelizer wih Quad A/D - PCIe

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Complete GSM channelizer with analog IF interface
  • Four 180 MHz 16-bit A/Ds
  • Two banks of 375 DDCs for upper GSM band
  • Two banks of 175 DDCs for lower GSM band
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multiboard synchronization
  • PCI Express Gen. 2 x8



Request a Quote

Model 78663

Cobalt Xilinx Virtex-6 RoHS compliant lead-free Products

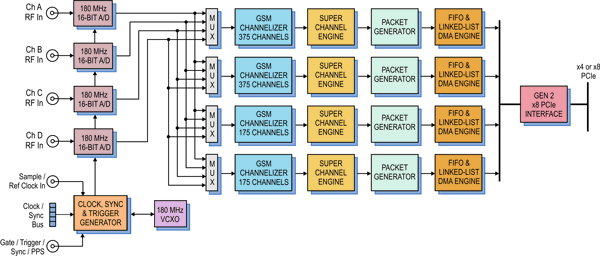

Model 78663 Block Diagram



Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71601 Addendum Model 716xx Battery Installation 1.1 (12/24/2013)
800.71603 Addendum Model 716xx Reprogram FPGA from FLASH 1.0 (12/24/2013)
800.71660 Operating Manual Model 71660 4-Channel A/D Cobalt Family XMC Module 2.12 (7/6/2015)
800.71663 Addendum Model 71663 4-Channel A/D, with 1100-ch DDCs, Cobalt Family XMC Module 1.2 (11/2/2015)
800.78062 Addendum Model 78xxx Option 251 Addendum 1.0 (5/26/2015)
800.78663 Installation Guide Model 78663 4-Channel A/D, with 1100-ch DDCs, Cobalt Family PCIe Module 1.2 (6/26/2015)
801.71660 Programmer's Reference ReadyFlow Board Support Libraries for Models 71660, 71661, 71662, and 71663 4.0 (5/16/2016)
809.7x660 Supplemental Manual Vendor Data Sheets for Model 7x660 Series Operating Manuals 1.0 (1/16/2012)
815.71660 User's Guide Model 4995A Option 166/661/662/176 Windows ReadyFlow BSP for 7166x, 7176x 4.3 (1/20/2015)
816.71660 User's Guide Model 4994A Option 166/66x/662/176/76x Linux ReadyFlow BSP for 7166x, 7176x 4.3 (5/9/2016)
820.78663 User's Guide Getting Started Guide for Model 78663 1.1 (6/26/2015)
Contact Pentek
For Manual
Model 4996A ReadyFlow Board Support Packages (BSPs) for VxWorks for Model 78663

Software Products - ( top )

Model
Option
Description
4994A 663 ReadyFlow Board Support Packages (BSPs) for Linux
4995A 663 ReadyFlow Board Support Packages (BSPs) for Windows
4996A 663 ReadyFlow Board Support Packages (BSPs) for VxWorks
