Model 78640 1-Chan 3.6 GHz or 2-Chan 1.8 GHz 12-bit A/D with Virtex-6 FPGA - PCIe

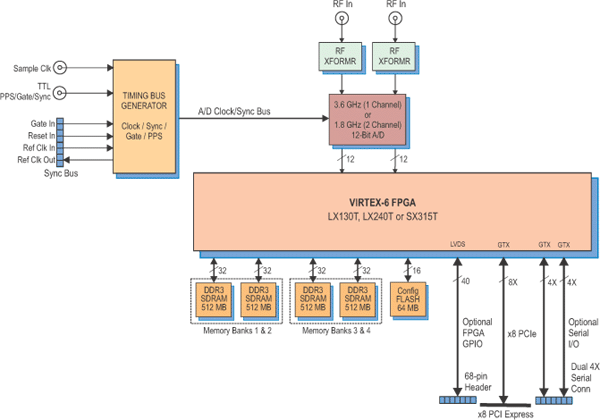

Block Diagram Data Sheet Manuals Software Literature Life Cycle Management

Limited Time: $2,000 Discount for Cobalt Virtex-6 Bundle Model 8266 PC Development System for PCIe Cobalt and Onyx Boards View product video Ideal radar and software radio interface solution Supports Xilinx Virtex-6 LXT and SXT FPGAs One-channel mode with 3.6 GHz, 12-bit A/D Two-channel mode with 1.8 GHz, 12-bit A/Ds 2 GB of DDR3 SDRAM Sync bus for multiboard synchronization PCI Express (Gen. 1 & Gen. 2) interface, up to x8 Clock/sync bus for multiboard synchronization Optional user-configurable gigabit serial interface Optional LVDS connections to the Virtex-6 FPGA for custom I/O Synchronize up to four modules with Model 7892 System Synchronization and Distribution Amplifier - PCIe Synchronize up to twelve modules with Model 9192 System Synchronization and Distribution Amplifier- 1U Rack-mount Available in the following form factors: Model 53640 - VPX 3U Model 71640 - XMC Model 72640 - cPCI 6U Model 73640 - cPCI 3U Model 74640 - cPCI 6U Please refer to the product datasheet for Installed FPGA IP Module details
