Model 7391 Programmable Multifrequency Clock Synthesizer - 3U cPCI

Block Diagram

Data Sheet

Manuals

Software

Literature

Industry Articles

Related Products

Life Cycle Management

  • Simultaneous synthesis of 5 different clocks
  • Eight SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -105 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 100 MHz
  • Four programmable VCXOs with 32-bit tuning resolution
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 700 MHz
  • Control and status via PCIe bus interface


Model 7391

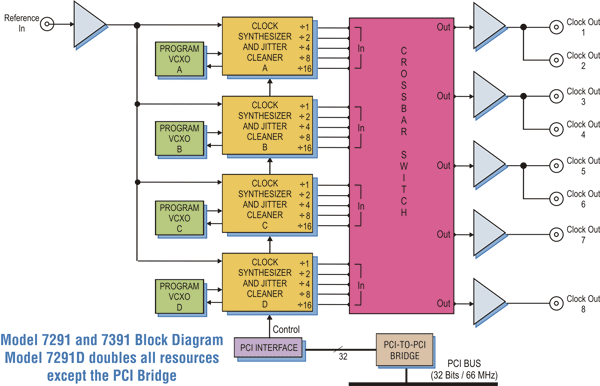

Model 7391 Block Diagram


Hardware and Software Manuals - ( top )

Part No. Type Description Revision/Date
800.73910 Operating Manual Model 7391 Multifrequency Clock Synthesizer 3U cPCI Board Preliminary (8/21/2009)
801.71911 Programmer's Reference ReadyFlow Board Support Libraries for Model 7191 Preliminary (8/18/2009)
815.71910 User's Guide Model 4995A Option 191 Windows ReadyFlow BSP for Model 7191 Preliminary (6/14/2010)
816.71910 User's Guide Model 4994A Option 191 Linux ReadyFlow BSP for Model 7191 Preliminary (8/18/2009)

Software - ( top )

Software Products
Model Option Description
4994A 191 ReadyFlow BSP for Linux
4995A 191 ReadyFlow BSP for Windows
4996A 191 ReadyFlow BSP for VxWorks
