Model 7352 32-Channel Quad 200 MHz 16-bit A/D DDC - 3U cPCI

Not recommended for new designs. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • 32 channels of DDC in four banks of 8 channels
  • Four 200 MHz, 16-bit A/Ds
  • Independent 32-bit DDC tuning for all 32 channels
  • DDC decimation from 16 to 8192 in steps of 8
  • Bandwidths from 20 kHz to 10 MHz
  • Different decimation factors between banks
  • User-programmable 18-bit FIR filter coefficients
  • Default filters offer 0.2 dB ripple and 100 dB rejection
  • Power meters and threshold detectors
  • LVPECL clock/sync bus for multiboard synchronization



Model 7352

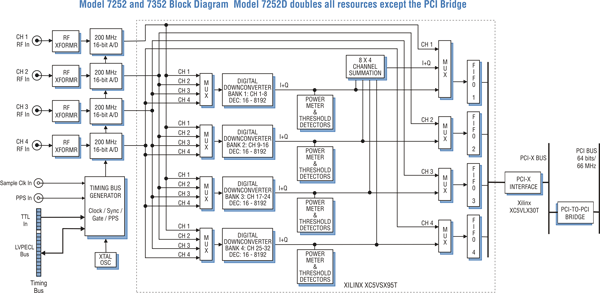

Model 7352 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.71520 Operating Manual Model 7152 32-Channel Multi-band DDC PMC Module A.3 (3/20/2014)
800.73520 Installation Guide Model 7352 32-Channel, Multi-band DDC 3U cPCI Board A (8/17/2010)
801.71521 Programmer's Reference ReadyFlow Board Support Libraries for Model 7152 A (6/8/2010)
809.7x500 Supplemental Manual Vendor Data Sheets for Model 7x50 Series Operating Manuals A (3/22/2010)
813.71520 User's Guide Model 4996A Option 152 VxWorks ReadyFlow BSP for Model 7152 1.0A (6/22/2010)
815.71520 User's Guide Model 4995A Option 152 Windows ReadyFlow BSP for Model 7152 1.1A (6/28/2010)
816.71520 User's Guide Model 4994A Option 152 Linux ReadyFlow BSP for Model 7152 1.1 (12/3/2010)
820.73520 User's Guide Getting Started Guide for Model 7352 A (12/1/2010)
