Model 7331 16-Channel Multiband Digital Receiver and A/D - 3U cPCI

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Two 80 or 105 MHz, 14-bit A/D converters
  • 16 channels of multiband digital downconverters
  • 5 kHz to 10MHz output bandwidth for fs = 100 MHz
  • 250 MHz input bandwidth
  • Ideal for IF sampling
  • User-configurable Xilinx Virtex-II FPGAs
  • Custom FPGA I/O through a cPCI J2 or J3 and J5 connectors
  • Bypass path allows direct capture of A/D data
  • Front panel clock and sync bus
  • Synchronization for up to 80 7331 with Model 9190



Model 7331

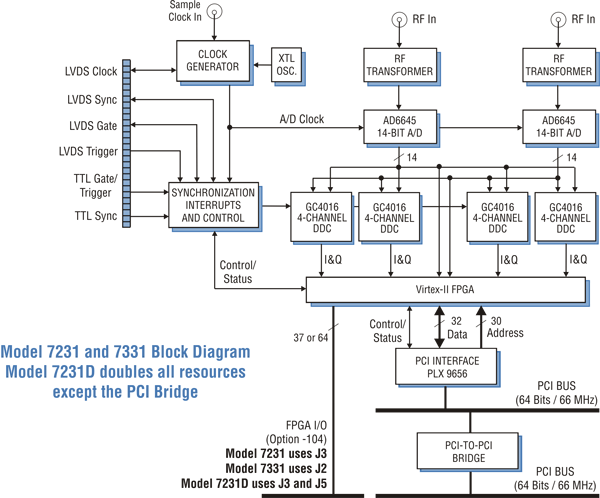

Model 7331 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.73310 Operating Manual Model 7331 16-Channel Digital Receiver 3U cPCI Board) A.2 (6/27/2006)
801.71310 User's Guide Model 4999 Option 131, ReadyFlow Board Support Libraries for Model 7131 2.1C (1/10/2005)
803.71310 User's Guide Model 4996 Option 131, VxWorks Driver for Model 7131 2.2 (6/5/2012)
805.71310 User's Guide Model 4995 Option 131, Windows Driver for Model 7131 2.0 (6/4/2012)
806.71310 User's Guide Model 4994 Option 131, Linux Driver for Model 7131 2.1 (6/5/2012)
