Model 6526 16-Channel 2-Input RACEway Digital Receiver

This product is no longer available. Contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Two TTL or ECL front panel inputs
  • Selectable 14-bit or 16-bit inputs
  • Sampling rate to 50 MHz (TTL), 62.5 MHz (ECL)
  • Dynamic range greater than 90 dB
  • ~0.015 Hz tuning resolution
  • Non-blocking crossbar switches
  • On-board input channel switch generator
  • 160 MB/sec RACEway outputs on VME P2
  • Each RACEway packet contains data from one channel only
  • Multiple-board channel synchronization for beam-forming applications
  • FIFO buffering
  • On-board time code generator for time stamping of data
  • Fully programmable tuning and decimation control
  • Compatible A/D's available (see Analog I/O section)
  • Compatible with the Pentek 4290 and 4291 Quad 'C6x DSP's and the 4285 Octal 'C40 DSP with RACEway interface



Model 6526

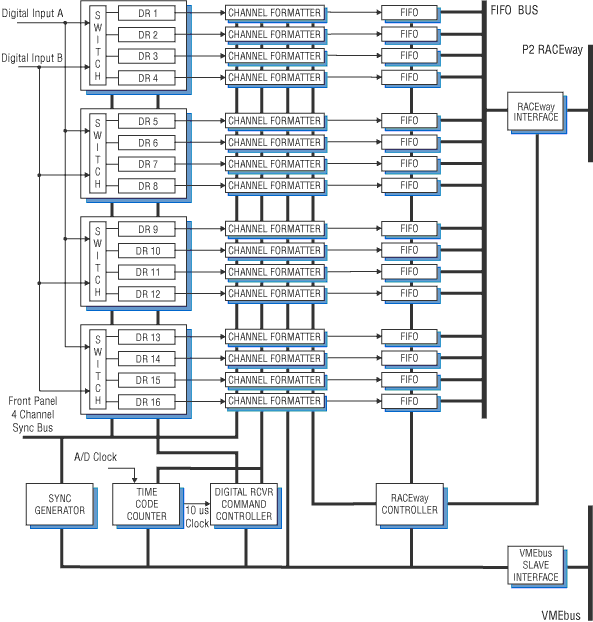

Model 6526 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.28030 Operating Manual Instruction Manual for Pentek P/N 2803-001 and 2803-002 Connecting Cables A (11/13/2000)
800.65260 Operating Manual 32-Channel Digital Receiver with RACEway A (9/20/2000)
801.65260 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6526 1 (10/13/1999)
