Model 6465 2-Channel, 12-Bit 65 MHz A/D Converter - VME

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Dual-channel, 12-bit, 65 MHz
  • Front ends for Pentek Digital Receivers
  • Front ends for the Pentek 6099A Buffer Memory
  • Front panel ECL outputs
  • Anti-aliasing filters, may be bypassed
  • Shielded construction reduces noise



Model 6465

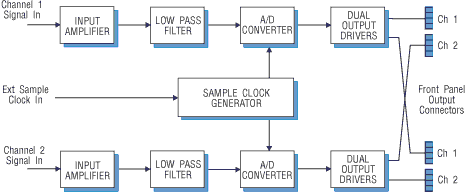

Model 6465 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.28030 Operating Manual Instruction Manual for Pentek P/N 2803-001 and 2803-002 Connecting Cables A (11/13/2000)
800.64650 Operating Manual   A.1 (11/10/2000)
