Model 6235 2-Channel Wideband Dig. Receiver + A/D with Virtex-II FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Two identical receiver channels include A/D, digital downconverter and a shared FPGA
  • Two low distortion 105 MHz 12-bit A/D converters
  • Wideband digital receivers with decimation range from 2 to 64
  • Output bandwidths to 40 MHz for 100 MHz sampling clock
  • Advanced Virtex-II FPGA for signal preprocessing
  • Factory-installed cores available



Model 6235

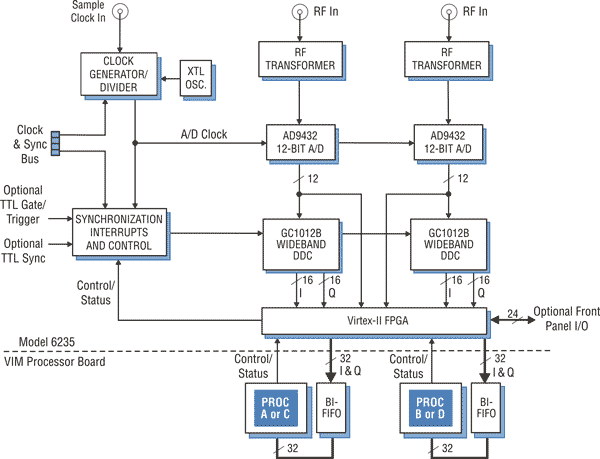

Model 6235 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.62311 Addendum Model 6231/6235/6236/6250 Option 102 Installation A (10/8/2003)
800.62350 Operating Manual Model 6235 2-Channel Wideband Digital Receiver VIM-2 Module B.1 (10/23/2006)
801.62350 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6235/6236 3.1 (7/2/2004)
803.62350 User's Guide Model 4996 Option 235, VxWorks Driver for Model 6235/6236 2.0 (6/1/2011)
