Home > Products > Model 6232

Your Pentek With YourPentek, you can be notified when new documentation and other updated product information is available for the Model 6232. Please login or register to manage your profile.

Model 6232 32-Channel Narrowband Dig Receiver, FPDP Inputs with Virtex-E FPGA - VIM

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs

Free Lifetime Support


  • Four 16-bit digital inputs on two FPDP connectors
  • Dual Field Programmable Gate Arrays (FPGAs)
  • Front panel FPGA I/O
  • All receivers can select any of the four inputs
  • 40 MHz input clock rate (fs)
  • 2 kHz to 1 MHz output bandwidths for fs = 40 MHz
  • Front panel clock/sync bus for board synchronization

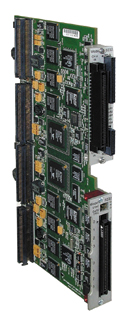

Model 6232

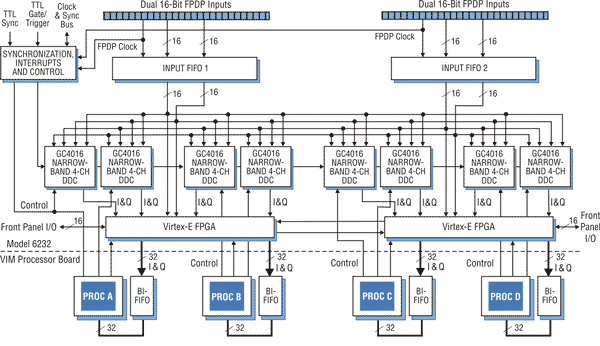

Model 6232 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00002 Miscellaneous VIM Specification E (6/10/2004)
800.62320 Operating Manual Model 6232 32-Channel Digital Receiver VIM Module A.5 (10/23/2006)
801.62320 User's Guide Model 4999 ReadyFlow Board Support Libraries for Model 6232 2.1B (1/10/2005)
803.62320 User's Guide Model 4996 Option 232, VxWorks Driver for Model 6232 1.0 (6/1/2011)
