Model 58141 2-Ch. 6.4 GHz or 4-Ch. 3.2 GHz A/D, 2-Ch 6.4 GHz D/A Kintex UltraScale - 6U VPX

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Development Systems

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Ideal radar and software radio interface solution
  • Supports Xilinx Kintex UltraScale FPGAs
  • Two-channel mode with 6.4 GHz, 12-bit A/D
  • Four-channel mode with 3.2 GHz, 12-bit A/D
  • Programmable DDCs (Digital Downconverters)
  • Two 6.4 GHz, 14-bit D/As
  • Programmable DUCs (Digital Upconverters)
  • 5 GB of DDR4 SDRAM
  • ┬ÁSync clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • Optional LVDS and gigabit serial connections to the FPGA for custom I/O
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPXTM System Specification)
  • Ruggedized and conduction-cooled versions available



Request a Quote

Model 58141

Jade Xilinx UltraScale

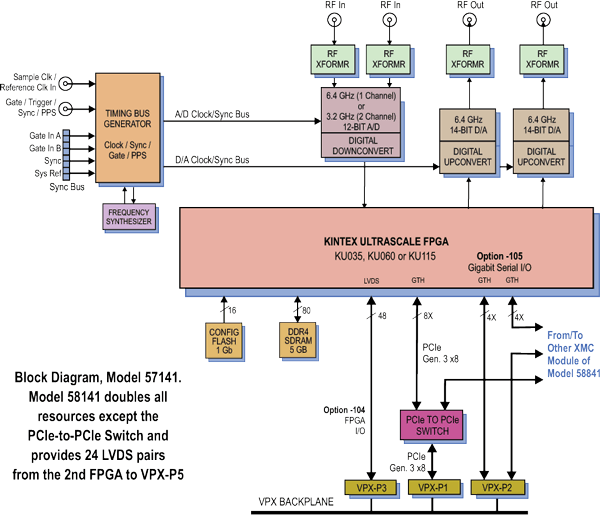

Model 58141 Block Diagram

Please refer to the product datasheet for a larger version of the block diagram


Pricing and Availability

For the latest pricing, delivery and available options, please fill out this form and your request will be delivered to the appropriate department. To learn more about our products or to discuss your specific application please email our sales department at sales@pentek.com, contact your local representative or Pentek directly:

Mario Schiavone
Sales Director
Pentek, Inc.
One Park Way
Upper Saddle River, NJ 07458
USA
Tel: +1 (201) 818-5900
Fax: +1 (201) 818-5904
sales@pentek.com
Map + Directions

Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

A complete set of user manuals is provided in HTML format. Access to detailed documentation of the IP Core modules and their programmable registers is only available in the HTML version of the operating manual. Instructions for getting the HTML version of the user manuals is provided in the User Manual Library document listed below.

Part No.
Type
Description
Revision/Date
800.48145 User's Guide Navigator BSP for Windows and Linux User's Guide 2.1 (10/5/2017)
Contact Pentek
For Manual
Model 4811 Navigator FDK (FPGA Design Kit) for Model 58141

Software Products - ( top )

Model
Option
Description
4811 141 Navigator FDK (FPGA Design Kit)
4814 141 Navigator BSP (Board Support Package) for Linux
4815 141 Navigator BSP (Board Support Package) for Windows
