Model 56741 1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D with DDC - AMC

Request a Quote

Block Diagram

Datasheet

Manuals

Software

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Ideal radar and software radio interface solution
  • Supports Xilinx Virtex-7 VXT FPGAs
  • GateXpress supports dynamic FPGA reconfiguration across PCIe
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/D
  • Programmable one- or two-channel DDC (Digital Downconverter)
  • 4 GB of DDR3 SDRAM
  • ┬ÁSync clock/sync for multiboard synchronization
  • PCI Express (Gen. 1, 2 & 3) interface up to x8
  • AMC.1 compliant
  • IPMI 2.0 compliant MMC (Module Management Controller)
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O



Request a Quote

Model 56741

Onyx Xilinx Virtex-7

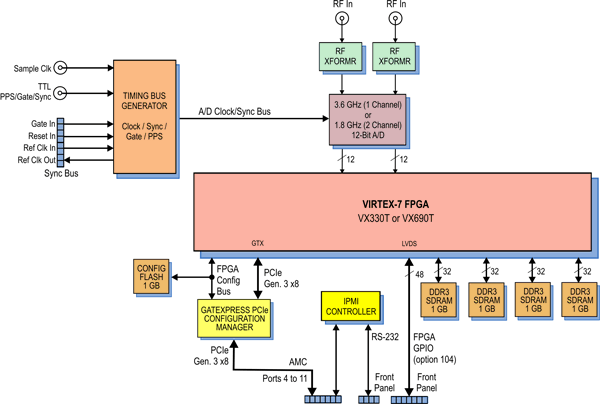

Model 56741 Block Diagram
