Model 4954-440 GateFlow IP Core Library - Pulse Compression Core

This IP Core is no longer available. See Pentek GateFlow Installed IP Cores for available products.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • IP Core only installed on Pentek FPGA board-level products
  • Supports Virtex-II , Virtex-II Pro, and Spartan-3 FPGAs
  • 155 MHz maximum clock with Virtex-II Pro FPGA
  • High-resolution block floating-point calculation using 16, 20, 24-bit math
  • Wide range of block sizes and data resolutions
  • FFT block sizes from 64 to 16384 data samples
  • Complex block floating point output formats: 16, 20, or 24-bit integer plus 6-bit exponent
  • Matched filter reference may be entered in time or frequency domain
  • Matched filter reference can be changed before processing each pulse or stored and reused
  • Matlab pulse compression utility functions included



Model 4954-440

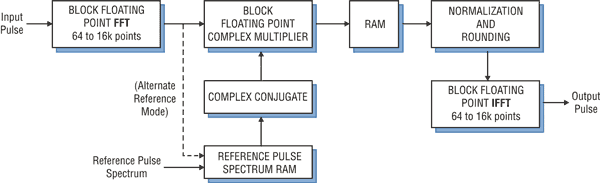

Model 4954-440 Block Diagram
