Model 4954-404 GateFlow IP Core Library - 4K Quad FFT Core

This IP Core is no longer available for individual purchase. It is available installed in Pentek Models 6235 and 6250.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • IP Core only installed on Pentek FPGA board-level products
  • Ultra-high-speed, high-performance 1024- and 4096-point complex FFTs
  • Supports Virtex-II and Virtex-II Pro FPGAs
  • Fits in the Virtex-II XC2V3000 and larger devices
  • Four input and output points per clock cycle
  • Flexible input stage accepts one, two or four input streams
  • 4096-point FFT calculation every 1024 clock periods (7.31 us at 140MHz)
  • 1024-point FFT calculation every 256 clock periods (1.83 ┬Ás at 140MHz)
  • Highly distributed arithmetic
  • 16-bit complex or real input data
  • Selectable 16-bit complex or unsigned power output data
  • Supports continuous input and output data
  • Selectable Hanning window function
  • Naturally ordered input and output data
  • Operates in continuous output or triggered oneshot mode



Model 4954-404

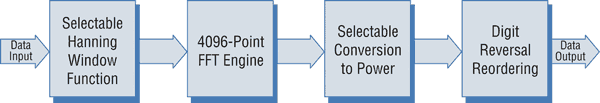

Model 4954-404 Block Diagram
