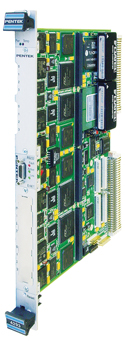

Model 4293 Octal C6203 DSP VME Board

This product is no longer available. Contact Pentek for more information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • Eight 300 MHz TMS320C6203 DSPs
  • 19,200 MIPS peak processing power
  • High-performance PMC and VIM mezzanine module sites
  • Four 300 MB/sec VIM mezzanine I/O BI-FIFOs
  • Four 300 MB/sec interprocessor BI-FIFOs
  • Four 300 MB/sec Bus I/O FIFOs
  • Eight 8 or 16 MB SDRAMs with 600 MB/sec transfer rates
  • 32 MB of shared global SDRAM
  • VME64 master/slave interface
  • Optional RACE++ interface with transfer rates to 267 MB/sec



Model 4293



Model 4293 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.42920 Operating Manual Model 4292/4293 Quad/Octal 'C6x DSP for VMEbus A.7 (8/2/2006)
800.42925 Addendum Model 4292/4293 Option 005 Installation 1.0 (4/16/2012)
801.42920 User's Guide Model 4999 Opt. 292, ReadyFlow Board Support Libraries Model 4292/4293 2.3A (10/12/2005)
801.62000 User's Guide Model 4999 ReadyFlow Board Support Libraries for Pentek VIM Modules 2.1 (11/28/2000)
801.62670 User's Guide Model 4999 ReadyFlow Board Support Libraries for TMS320c62x/c67x Processors 1.1 (11/28/2000)
