Model 4283 Single TMS320C30 Processor

This product is no longer available. Contact Pentek for additional information.

Block Diagram

Datasheet

Manuals

Literature

Life Cycle Management

Ordering & Warranty

Catalogs


  • 40 MFLOPS peak processing power
  • 1, 4, or 8 MB dual-access DRAM
  • 256 kB SRAM
  • 128 kB EPROM for system firmware
  • Two front panel serial I/O ports
  • Accepts up to 3 MIX expansion modules

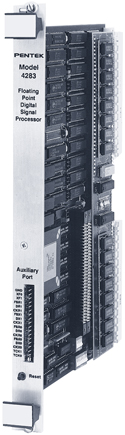

Model 4283

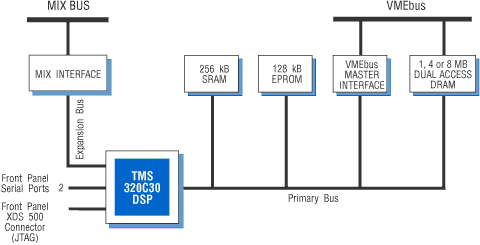

Model 4283 Block Diagram



Hardware and Software Manuals - ( top )

Please note that some hardware and software manuals are used for more than one Pentek product. Although the model numbers given in the description of each manual below may vary, these manuals are all used for the product described on this web page.

Part No.
Type
Description
Revision/Date
800.00001 Supplemental Manual VMEBus MIX Tutorial A.1 (12/21/2010)
800.00250 Installation Guide Linking Pentek Module Front Panels & Ejector Handles A.1 (9/29/1998)
800.00300 Installation Guide MIX Stack Assembly Quick Reference A (2/9/2000)
800.42830 Operating Manual   G.1 (1/27/1999)
