Model 4253 32 Channel 12-bit 100 kHz D/A Converter

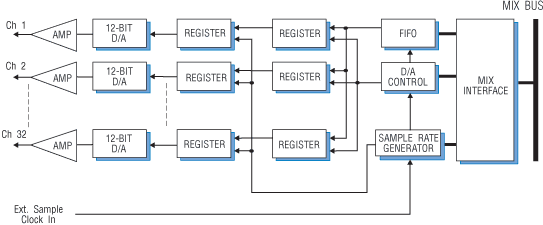

Block Diagram

Data Sheet

Manuals

Literature

Industry Articles

Related Products

Life Cycle Management

12-bit resolution
High-speed conversion to 100 kHz with all channels active
Low distortion and crosstalk
Programmable sampling rate and number of active channels
1 ksample FIFO expandable to 16 ksample

Model 4253

Please refer to the product datasheet for a larger version of the block diagram

Hardware and Software Manuals - ( top )

Searching for an instruction manual or product data sheet? Request it here.

Part No.	Type	Description	Revision/Date
800.00001	Supplemental Manual	VMEBus MIX Tutorial	A.1 (10/20/1999)
800.00300	Installation Guide	MIX Stack Assembly Quick Reference	A (2/9/2000)
800.42530	Operating Manual		C (8/26/1998)
