Advances in optical interface technology boost performance levels to help meet increasing data rates and signal bandwidths. New specifications define how to deploy these optical links within open industry standards, affording improved interoperability and supporting future upgrades. Offering many advantages over traditional copper connections, optical links will boost data rates, improve signal integrity and security, and greatly extend distance between system components.

Pentek's Flexor Model 5973 3U VPX Virtex-7 FMC carrier

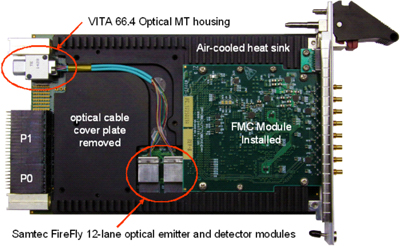

Pentek's Flexor Model 5973 3U VPX Virtex-7 FMC carrier is the industry's first VITA 66.4 optical backplane product. Samtec FireFly optical transceivers deliver data rates up to 12 GB/sec full duplex to the backplane supporting a wide range of protocols implemented within the FPGA.




Product Focus

Virtex-7 Processor and FMC Carrier - 3U VPX

Features

  • VITA-57.1 FMC site offers access to a wide range of possible I/O
  • Supports Xilinx Virtex-7 VXT FPGAs
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2 and 3) interface up to x8
  • Optional user-configurable gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 AND VITA-66.4 and VITA-65 (OpenVPXTM System Specification)
  • Ruggedized and conduction-cooled versions available
Model 5973
Model 5973

Flexor FMC family

GateFlow FPGA Design Resources




Product Focus

Flexor Virtex-7 Processor and FMC Carrier - PCIe

Features

  • VITA-57.1 FMC site offers access to a wide range of possible I/O
  • Supports Xilinx Virtex-7 VXT FPGA
  • GateXpress supports dynamic FPGA recognition across PCIe
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2, and 3) interface up to x8
  • Optional user-configurable 12X optical gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Commercial and extended-temperature versions available
Model 7070
Model 7070

Flexor FMC family

GateFlow FPGA Design Resources




Product Focus

Adaptive Relay, Virtex-6 FPGA - XMC

Features

  • Modifies 34 IF signals between input and output
  • Up to 80 MHz IF bandwidth
  • Two 200 MHz 16-bit A/Ds
  • Two 800 MHz 16-bit D/As
  • 34 DDCs and 34 DUCs (digital downconverters and digital upconverters)
  • Signal drop/add/replace
  • Frequency shifting and hopping
  • Amplitude boost and attenutation
  • PCI Express Gen 1: x4 or x8
  • Synchronize up to eight modules with Model 7893 System Synchronization and Distribution Amplifier - PCIe
  • Model 8266 SPARK Development System for Cobalt (Xilinx Virtex-6) PCIe Boards
Model 71624
Model 71624

Cobalt Virtex-6 Family

GateFlow FPGA Design Resources





Product Focus

6U VPX Development System for Cobalt and Onyx Boards

Features

  • 9U 19-inch rackmount, 9-slot, 16-inch deep chassis which houses 6U VPX boards
  • 64-bit Windows® 7 Professional or Linux® workstation
  • Intel® Core™ i7 3.6 GHz processor
  • 8 GB DDR3 SDRAM
  • Out-of-the-box ready-to-run examples
Model 8264
Model 8264

Spark Development Systems







ReadyFlow Signal Analyzer

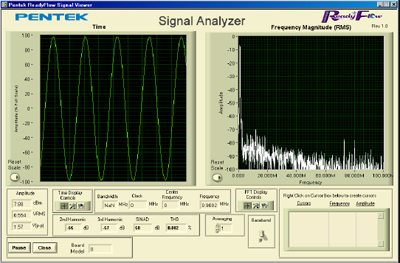

Pentek's Signal Analyzer is a full-featured analysis tool that continuously displays live signals in both time and frequency domains. The signal analyzer is available with all SPARK development systems.




Product Focus

200 MS/sec RF/IF Rugged Portable Recorder

Features

  • Designed to operate under conditions of shock and vibration
  • Portable system measuring 16.0" W x 6.9" D x 13.0" H
  • Lightweight: just less than 30 pounds
  • Shock-and-vibration resistant SSDs perform well in vehicles, ships and aircraft
  • 200 MHz 16-bit A/Ds
  • 800 MHz 16-bit D/As
Model 2726a
Model 2726a

Talon RTR Rugged Recorders

SystemFlow Software for Talon Recording Systems
  • 80 MHz record and playback signal bandwidths
  • Recording & playback of IF signals up to 700 MHz
  • Real-time sustained recording rates of up to 3.2 GB/sec




Product Focus

Serial FPDP Value Rackmount Recorder

Features

  • Complete Serial FPDP record and playback system
  • Lowest-cost entry into serial FPDP
  • Quick delivery: Model RTV 2602 ships from stock
  • 4U 19-inch industrial rackmount PC server chassis
  • 4 TB of data storage to NTFS RAID disk array
Model 2602
Model 2602

Talon RTV Value Recorders

SystemFlow Software for Talon Recording Systems
  • Real-time aggregate recording rates up to 400 MB/sec
  • Windows® 7 Professional workstation with high-performance Intel® Core™ i3 processor
  • SystemFlow® recording software
  • C-callable API for integration of recorder into application
  • File headers include time stamping and recording parameters
  • Optional GPS time and position stamping






The SystemFlow® Simulator demonstrates the Configuration, Record, Playback and Status screens to illustrate the intuitive controls and indicators of the recorder.

It also includes the SystemFlow Signal Viewer to display simulated live signals being digitized and recorded by a Pentek analog signal recorder.

SystemFlow Simulator

SystemFlow Software

The SystemFlow Signal Viewer includes a virtual oscilloscope and a virtual spectrum analyzer for signal monitoring in both the time and frequency domains.




Q&A with Pentek

Q: How do I get help when I have a technical problem with a Pentek product?

A: Pentek offers FREE support to all our customers. The best way to contact support is to email support@pentek.com with some background information about your application and a description of the problem.

Q: I just received an email from YourPentek informing me that the software we are using has been upgraded. Do I need to upgrade? How do I get an upgrade?

A: There are many reasons we choose to upgrade the software. It could be to add functionality for a new board, to add support for an upgraded operating system, or to fix a bug in the software.

Typically, if you have a working application, it is probably not necessary to upgrade the software unless you need to accommodate a change in your system. If you are unsure, please contact our support staff at support@pentek.com and ask them to guide you.
