Designers of mil-aero software radio boards must ensure outstanding signal quality and reliability across a diverse range of harsh operating environments. Size constraints and high component density require clever solutions for thermal management, shielding, filtering, noise reduction, power dissipation, and mechanical layout. Designers deal with these challenges using strategies developed only by tackling each issue, often through trial and error.

An air-cooled XMC module uses a highly-effective nickel-plated copper band to pull heat from a large FPGA on the underside
of the board into an aluminum finned heat sink sitting in the airflow.

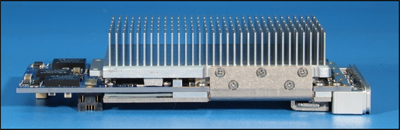

An air-cooled XMC module uses a highly-effective nickel-plated copper band to pull heat from a large FPGA on the underside of the board into an aluminum finned heat sink sitting in the airflow.




Product Focus

Serial FPDP Rugged Portable Recorder

Features

  • Designed to operate under conditions of shock and vibration
  • Portable system measures 16.0" W x 6.9" D x 13.0" H
  • Lightweight, just less than 30 pounds
  • Shock-and-vibration-resistant SSDs perform well in vehicles, ships, and aircraft
  • Up to eight I/O channels
  • Supports Flow Control, CRC, and Copy/Loop mode as a receiver and transmitter
  • Supports 1.0625, 2.125, 2.5, 3.125, and 4.25 GBaud link rates
  • Copper, single-mode and multi-mode fiber interfaces available
  • Real-time aggregate recording rates up to 3.2 GB/sec
Model 2736A
Model 2736A

Talon RTR Family

SystemFlow Software




Product Focus

Flexor Virtex-7 Processor and FMC Carrier - PCIe

Features

  • VITA-57.1 FMC site offers access to a wide range of possible I/O
  • Supports Xilinx Virtex-7 VXT FPGA
  • GateXpress supports dynamic FPGA recognition across PCIe
  • 4 GB of DDR3 SDRAM
  • PCI Express (Gen. 1, 2, and 3) interface up to x8
  • Optional user-configurable 12X optical gigabit serial interface
  • Optional LVDS connections to the Virtex-7 FPGA for custom I/O
  • Commercial and extended-temperature versions available
Model 7070
Model 7070

Flexor FMC family

GateFlow FPGA Design Resources






The SystemFlow® Simulator demonstrates the Configuration, Record, Playback and Status screens to illustrate the intuitive controls and indicators of the recorder.

It also includes the SystemFlow Signal Viewer to display simulated live signals being digitized and recorded by a Pentek analog signal recorder.

SystemFlow Simulator

SystemFlow Software

The SystemFlow Signal Viewer includes a virtual oscilloscope and a virtual spectrum analyzer for signal monitoring in both the time and frequency domains.






ReadyFlow Signal Analyzer

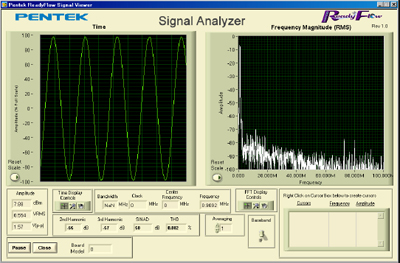

Pentek's Signal Analyzer is a full-featured analysis tool that continuously displays live signals in both time and frequency domains. The signal analyzer is available with all SPARK development systems.






Model 8267 SPARK Development System for OpenVPX
SPARK Development System

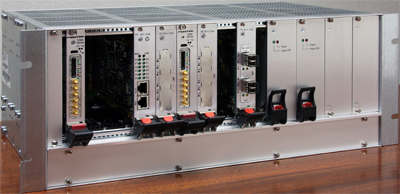

The Model 8267 is a fully-integrated, 3U OpenVPX development system for Pentek Cobalt®, Onyx® and Flexor® software radio, data acquisition and I/O boards. It was created to save engineers the time and expense associated with developing a system that ensures optimum performance of Pentek boards.







Model 8266 SPARK PC Development System
SPARK Development System

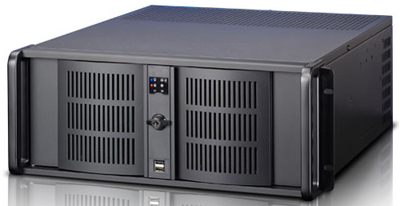

The Model 8266 resolves the typical hardware and software compatibility obstacles inherent in new PC development platforms. All hardware is installed in appropriate slots with proper cabling, power and cooling strategies, and optimized BIOS.





What's New

Press Releases

March 24, 2015
Pentek Introduces Dual Channel Adaptive IF Relay XMC for Commercial and Military Communications


February 23, 2015
Pentek Introduces Deployable PCIe FMC Carrier with Optical Interface

  • Model 7070 Flexor Virtex-7 Processor and FMC Carrier - PCIe
