FPGAs have profoundly shaped both the application space and performance levels of software defined radios—perhaps more so than any other single technology.


"FPGAs have clearly revolutionized embedded system board-level product design. FPGA vendors continue to compete by offering new features, better performance, higher density, and lower power."

- Rodger Hosking, Pentek Vice President and Cofounder




Product Focus

32-Channel Digital Downconverter with four 200 MHz, 16-bit A/Ds and Virtex-6 FPGA - XMC

Features
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Four 200 MHz 16-bit A/Ds
  • Four multiband DDCs
  • Up to 2 GB of DDR3 SDRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 1 & 2) interface, up to x8
  • User-configurable serial gigabit interfaces
  • LVDS connections to the Virtex-6 FPGA for custom I/O

Pentek Model 71662

Model 71662





Rugged 200 MHz High-Speed Real-Time Recorder and Playback System Designed to MIL-STD-810F

Features
  • Complete multiband recording and playback system
  • 4 U 19 inch industrial rugged rackmount PC server chassis
  • Windows 7 Professional workstation with high performance Intel Xeon processor
  • 200 MHz max 16-bit A/D sampling and recording: 0 to 8 channels

Pentek Model 2746

Model 2746

  • 1.25 GHz max 16-bit D/A sampling for playback: 0 to 8 channels
  • 80 MHz maximum record/playback signal bandwidths
  • Capable of record/playback of IF frequencies up to 700 MHz
  • Real-time sustained recording rates of up to 1600 MBytes/sec in 4-channel configuration
  • Removable SSD drives
  • Up to 24 terabytes of storage to NTFS RAID disk array
  • RAID levels 0, 1, 5, 6, 10 and 50




L-Band RF Tuner with 2-Channel 200 MHz 16-bit A/Ds and Virtex-6 FPGA - x8 PCIe

Features
  • Accepts RF signals from 925 MHz to 2175 MHz
  • Programmable LNA boosts LNB (low-noise block) antenna signal levels with up to 60 dB gain
  • Programmable analog downconverter provides I + Q baseband signals with bandwidths from 4 to 40 MHz
  • Two 200 MHz 16-bit A/Ds
  • Supports Virtex-6 LXT and SXT FPGAs
  • 2 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • PCI Express (Gen. 1 & 2) interface, up to x8

Pentek Model 78690
Model 78690





1-Channel 3.6 GHz or 2-Channel 1.8 GHz 12-bit A/D and Virtex-6 FPGA - 3U VPX

Features
  • One-channel mode with 3.6 GHz, 12-bit A/D
  • Two-channel mode with 1.8 GHz, 12-bit A/Ds
  • 2 GB of DDR3 SDRAM
  • Sync bus for multiboard synchronization
  • LVDS connections to the Virtex-6 FPGA for custom I/O
  • 3U VPX form factor provides a compact, rugged platform
  • Compatible with several VITA standards including: VITA-46, VITA-48 and VITA-65 (OpenVPXTM System Specification)


Pentek Model 53640

Model 53640




Cobalt Products Now Available in CompactPCI
Offerings Include 6U cPCI with Single or Double Density and 3U cPCI


ReadyFlow Cobalt Virtex-6 GateFlow FPGA Design Resources

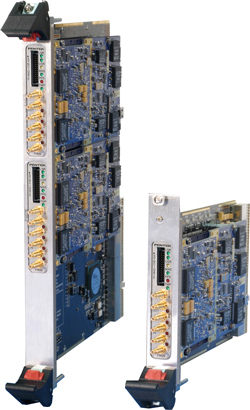

Models 72620, 73620, 74620: Transceivers, with three or six 200 MHz A/Ds, DUCs and two or four 800 MHz D/As

Models 72620 73620 74620
Product Information:


Models 72621, 73621, 74621: Models 72620, 73620, 74620 with wideband DDCs and Interpolation Filters

Product Information:




Models 72660, 73660, 74660: 4- or 8-Channel 200 MHz, 16-bit A/Ds

Models 72660 73660 74660
Product Information:


Models 72661, 73661, 74661: Models 72660, 73660, 74661 with DDCs and Beamformers

Product Information:

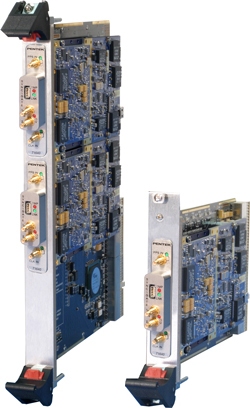

Models 72640, 73640, 74640: 1- or 2-Ch. 3.6 GHz and 2- or 4-Ch 1.8 GHz A/Ds

Models 72640 73640 74640

Product Information:

Models 72662, 73662, 74662: Models 72660, 73660, 74661 with 32- or 64-Channel DDC

Product Information:

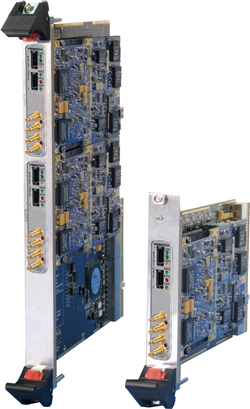

Models 72630, 73630, 74630: 1 GHz A/Ds, 1GHz D/As

Models 72630 73630 74630
Product Information:

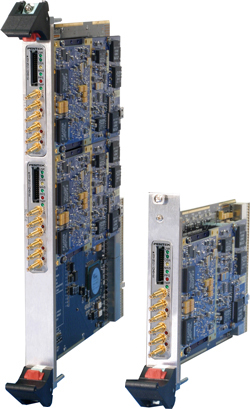

Models 72650, 73650, 74650: Transceivers, with two or four 500 MHz A/Ds, one or two DUCs and two or four 800 MHz D/As

Models 72650 73650 74650

Product Information:



Models 72690, 73690, 74690: One or Two RF L-Band Tuners with Two or Four 200 MHz A/Ds

Models 72690 73690 74690
Product Information:



What's New
Press Releases

Jun 21, 2011
Pentek Announces Industry's Highest-Speed Data Acquisition Module with Multi-Board Synchronization for Radar and UAV Applications
  • 3.6 GHz Data Acquisition with 12-bit Resolution
  • Single- and Dual-Channel Operation with Synchronization
  • 2 GB Deep On-Board Memory and High-Speed Serial I/O
  • On-Board Virtex-6 FPGA for Customized Data Processing
Pipeline Footer
