Spring 2010 Vol. 19, No. 1

Pentek's New Products and Special Offers


Model 2721 Portable High-Speed Multiband Recording & Playback System

Features:

  • Two 14-bit 125 MHz A/Ds
  • One 16-bit 500 MHz D/As
  • Lightweight: approximately 30 lbs
  • Portable system, measuring 16.9" W x 9.5" D x 13.4" H
  • RAID levels 0, 1, 5, 6, 10 and 50
  • Windows SystemFlow® recording software

  • Complete high-performance Windows Workstation
  • Real-time sustained recording rates of up to 480 MBytes/sec
  • Standard configuration with 3 Terabytes of hot-swap storage to NTFS RAID disk array
  • Product Information, click here


Model 7158 Dual 500 MHz A/Ds, 800 MHz D/As, and Virtex-5 FPGAs - PMC/XMC

Features:

  • Complete software radio interface solution
  • Two 500 MHz, 12-bit A/Ds
  • One digital upconverter
  • Two 800 MHz, 16-bit D/As
  • Up to 1 GB of DDR2 SDRAM
  • Two Xilinx Virtex-5 FPGAs
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • 32 pairs of LVDS connections to the Virtex-5 FPGAs for custom I/O on P14
  • Product Information, click here

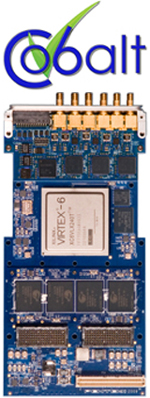

Cobalt® Model 71620 3 Channel 200 MHz A/D & 2 Channel 800 MHz D/A with Virtex-6 FPGA - XMC

Features:

  • Complete software radio interface solution
  • Supports Xilinx Virtex-6 LXT and SXT FPGAs
  • Three 200 MHz 16-bit A/Ds
  • One digital upconverter
  • Two 800 MHz 16-bit D/As
  • Up to 1 GB of DDR3 SDRAM or 32 MB of QDRII+ SRAM
  • Sample clock synchronization to an external system reference
  • LVPECL clock/sync bus for multimodule synchronization
  • PCI Express (Gen. 2) interface up to x8 wide
  • VITA 42.0 XMC compatible with switched fabric interfaces
  • LVDS connections to the Virtex-6 FPGA for custom I/O
  • Product Information, click here



Model 7190 Multifrequency Clock Synthesizer - PMC

Features:

  • Simultaneous synthesis of up to 5 different clocks
  • 8 SMC clock outputs
  • Ideal for A/D and D/A converter clock sources
  • Typical phase noise: -125 dBc/Hz @ 1 kHz offset
  • All clocks are phase-locked to input reference signal
  • Input reference frequency of 5 or 10 MHz
  • Four quad VCXOs allow selection from 16 different base frequencies
  • Output clocks of 1, 2, 4, 8, or 16 submultiples of VCXO base frequencies
  • Output clock frequencies between 50 and 500 MHz
  • Control and status via PCI bus interface
  • Product Information, click here

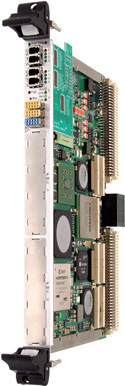

Model 4207 MPC8641D PowerPC & Virtex-4 FPGA I/O Proc - VME/VXS

Features:

  • Freescale MPC8641D single or dual core PowerPC processor to 1.5 GHz
  • Xilinx Virtex-4 FX Series FPGA
  • Hosts two PMC or XMC modules
  • On-board dual gigabit Ethernet interfaces
  • Optional on-board 4-Gbit dual optical Fibre Channel controller
  • Optional dual optical gigabit serial/Fibre Channel interface
  • Up to 3 GB DDR2 SDRAM
  • Two 64-bit PCI-X buses
  • VME64x master/slave interface
  • Optional VXS interface
  • Native Serial RapidIO Interface
  • Rugged and conduction-cooled versions
  • Contact Pentek for PCIe options
  • Product Information, click here



Model 7751D Octal 200 MHz, 16-bit A/D, 512 Channel DDC - PCIe

Features:

  • 512 DDC channels
  • Eight 200 MHz 16-bit A/Ds
  • Independent tuning for each channel
  • DDC decimation from 128 to 1024 in steps of 64
  • Independent decimation for each 64-channel DDC bank
  • Each DDC bank independently selects one of eight A/Ds
  • User-programmable 18-bit FIR filter coefficients
  • Default filters offer 0.2 dB ripple and 100 dB rejection
  • LVPECL clock/sync bus for multimodule synchronization
  • Product Information, click here
