Model 4290 Configurable Quad TMS320C6201 Processor

This product is no longer available for new designs.

Block Diagram

Data Sheet

Manuals

Software

Literature

Industry Articles

Related Products

Life Cycle Management

Four TMS320C6201 fixed-point DSP's operating at 200 MHz
6400 MIPS performance
Memory resources for each processor:

16 MB SDRAM
512 kB zero-wait sync burst SRAM
256 kB dual port SRAM

I/O resources for each processor:

Two serial full-duplex ports for VIM I/O
Read/write memory access to VIM mezzanine
2 x 1k x 32 bidirectional FIFO for VIM mezzanine board I/O
2 x 1k x 32 bidirectional FIFO for interprocessor communication

Global bus resources accessible by all processors and VMEbus:

Four 256 kB dual port SRAM's
8 kB of fast, non-volatile SRAM
8 MB flash memory for 'C6201 boot code and user applications
2 MB global SRAM for sharing common data
Memory-mapped slave expansion for other memory and I/O

Host port for all four processors
Data transfer rates up to 400 MB/sec
VIM interface adapters for application-specific front panel I/O
Optional P2 interfaces: RACEway, VSB, custom I/O
VME64 master/slave interface
VME memory-mapped J-TAG controller
Development tools for UNIX and Windows 95/98/NT workstations

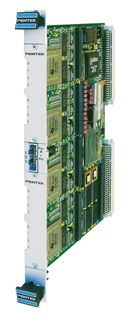

Model 4290

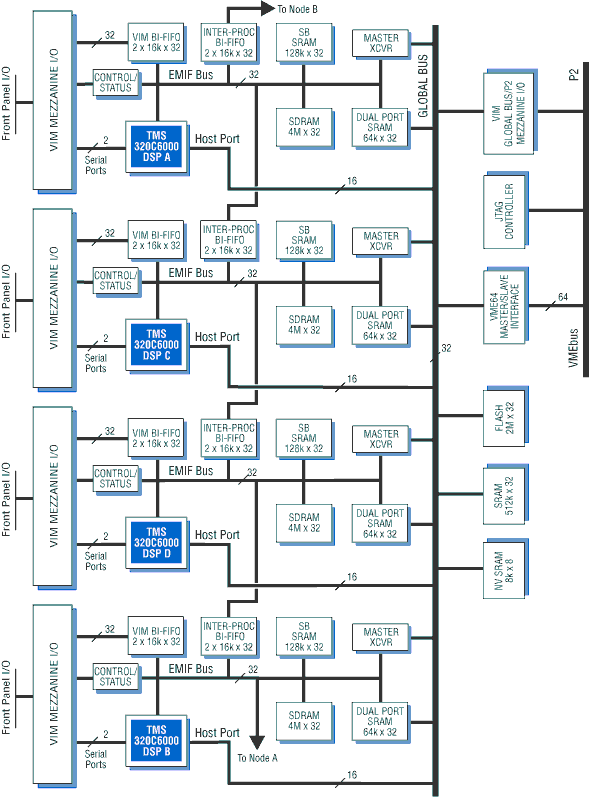

Please refer to the product datasheet for a larger version of the block diagram

Hardware and Software Manuals - ( top )

Searching for an instruction manual or product data sheet? Request it here.

Part No.	Type	Description	Revision/Date
800.00002	Miscellaneous	VIM Specification	E (6/10/2004)
800.42900	Operating Manual	Operating Manual for Model 4290 and 4291	D (10/29/2002)
800.42908	Release Note	Upgrading Model 4290's Boot Firmware	B (12/8/2000)
800.42909	Release Note	Inital Setup	Preliminary (3/1/1999)
801.42900	User's Guide	Model 4999 ReadyFlow Board Support Libraries for Models 4290/4291	2.3A (7/6/2004)
801.62000	User's Guide	Model 4999 ReadyFlow Board Support Libraries for Pentek VIM Modules	2.1 (11/28/2000)
801.62670	User's Guide	Model 4999 ReadyFlow Board Support Libraries for TMS320c62x/c67x Processors	1.1 (11/28/2000)
